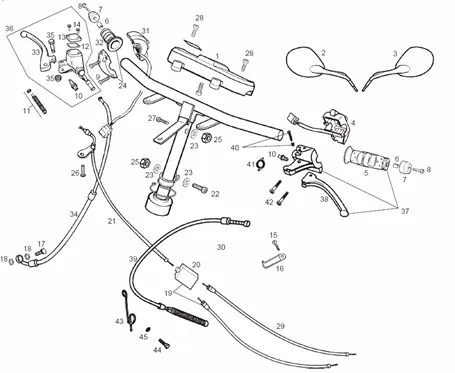

Vehicle Exploded View - DERBI GP 50 GP Series O2 Export 2001 (EMEA)

	P2R reference	194741
	Maker reference	00G00901671

00G00901671 - SOUS-ENSEMBLE TIGE PLATINE

	P2R reference	194742
	Maker reference	00G02207671

00G02207671 - RETROVISEUR D.

	P2R reference	194743
	Maker reference	00G04608921

00G04608921 - RETROVISEUR G.

	P2R reference	194744
	Maker reference	00G01701701

00G01701701 - ENSEMB.COMMUTATEUR CLIGNOTTANT

	P2R reference	189250
	Maker reference	00G00902071

00G00902071 - POIGNEE FREIN ARRIERE HUNTER

	P2R reference	64138
	Maker reference	00G05800251

00G05800251 - DOUILLE SEPARATION CONTREPOIDS

	P2R reference	193413
	Maker reference	00G02102921

00G02102921 - CONTRE-POIDS DE GUIDON

	P2R reference	63650
	Maker reference	000041545005

00004154500 - VIS

	P2R reference	166329
	Maker reference	00F00901151

00F00901151 - VIS FIXATION COUVRE POIGNEE GA

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	166320
	Maker reference	00H02101811

00H02101811 - R-ENSEM.KIT REPAR. POMPE SENDA

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861

	P2R reference	64648
	Maker reference	00H02100191

FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191-

	P2R reference	70959
	Maker reference	969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

	P2R reference	64101
	Maker reference	00G03702181

00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	63949
	Maker reference	00G00900401

00G00900401 - CABLE

	P2R reference	63951
	Maker reference	00G00901861

DEDOBLATEUR OEM DERBI 50 ATLANTIS 2003 >-00G00901861

	P2R reference	194745
	Maker reference	00G00910171

00G00910171 - CTO.CABLE FUNDA GAS PR.GP1

	P2R reference	63652
	Maker reference	000041845005

SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500

	P2R reference	63596
	Maker reference	000000310805

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

	P2R reference	193415
	Maker reference	00G00902081

00G00902081-ENSEMBLE GRIP THROTTLE HUNTER

	P2R reference	63591
	Maker reference	000000230805

00000023080-NUT INDESSERABLE 8M125

	P2R reference	63693
	Maker reference	000120512005

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200

	P2R reference	63620
	Maker reference	000020840115

00002084011 - VIS

	P2R reference	63570
	Maker reference	000000046125

00000004612-SCREW A HEAD ALLEN 6M100X12.

	P2R reference	67250
	Maker reference	582256

CABLE/CONTROL/TRANSMISSION DE THROTTLE (DEDOUBLEUR/CARBURETTOR) OEM PIAGGIO 50 ZIP SP, NRG MP3 1998 > 2005/GILERA 50 RUNNER 1998 > 2005-582256

	P2R reference	194746
	Maker reference	00G00900651

00G00900651-CABLE ET GAINE AIR.

	P2R reference	194747
	Maker reference	00G02301171

00G02301171 - ENS.COMMUTATEUR D'ECLAIRAGE HU

	P2R reference	189246
	Maker reference	00G00902091

00G00902091 - R-POIGNEE GAZ HUNTER

	P2R reference	166325
	Maker reference	00G00901201

00G00901201 - MANETTE DU FREIN AVANT

	P2R reference	194748
	Maker reference	00G00904751

00G00904751 - R-ENS.TUYAU LIQ.FREINS AVANT H

	P2R reference	193817
	Maker reference	00F05800021

00F05800021 - VIS AVEC ECROU

	P2R reference	64019
	Maker reference	00G02102081

BRAKE MASTER CYLINDER FRONT OEM PIAGGIO GILERA 50 SMT, RCR 1998 > 2003-00G02102081

	P2R reference	194749
	Maker reference	00G02101611

00G02101611 - ENS. PORTE-MANETTE GAUCHE HUNT

	P2R reference	63901
	Maker reference	00F00910291

LEVER D'EMBRAYAGE 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2003 > 2010/DERBI SENDA 2003 > 2010 (BLACK)-00F00910291

	P2R reference	194750
	Maker reference	00G00905431

00G00905431 - SOUS-ENS.CABLE-GAINE FREIN AR

	P2R reference	193420
	Maker reference	00G00900211

00G00900211 - R-ENSEMB.VIS ARTICULATION MANE

	P2R reference	65772
	Maker reference	177072

SPRING LEVER CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2010 >-177072

	P2R reference	166329
	Maker reference	00F00901151

00F00901151 - VIS FIXATION COUVRE POIGNEE GA

	P2R reference	194751
	Maker reference	00G00901531

00G00901531 - RESSORT GUIDE CAB.FREIN AR.VM'

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	63646
	Maker reference	000040616005

00004061600-SCREW
