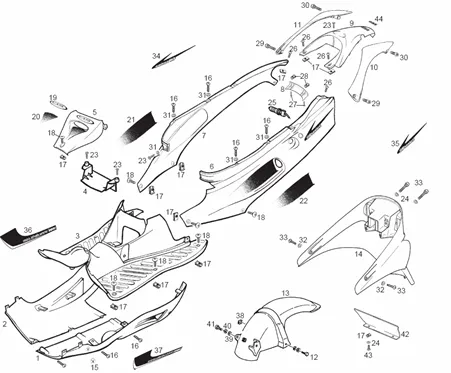

Vehicle Exploded View - DERBI GP 50 GP Series O2 Export 2001 (EMEA)

	P2R reference	194796
	Maker reference	00G02204552

00G02204552 - R-S-ENSEMBLE.QUILLE GAUCHE PR

	P2R reference	194797
	Maker reference	00G02204551

00G02204551 - R-S-ENSEMBLE.QUILLE GAUCHE PR

	P2R reference	194798
	Maker reference	00G01804832

00G01804832 - R-S-ENSEMBLE.QUILLE DROIT

	P2R reference	194799
	Maker reference	00G01804831

00G01804831 - R-S-ENSEMBLE.QUILLE DROIT

	P2R reference	194800
	Maker reference	00G02200332

00G02200332 - REPOSE-PIED

	P2R reference	194801
	Maker reference	00G01500901

00G01500901 - COUVERCLE BATTERIE PREDATOR

	P2R reference	194802
	Maker reference	00G02204971C5

00G02204971C5 - R-S-ENSEMBLE COUVERCLE REG.MO

	P2R reference	194803
	Maker reference	00G00515702

00G00515702 - R-S-ENSEMBLE COUVERCLE LATERA

	P2R reference	194804
	Maker reference	00G00515701

00G00515701 - R-S-ENSEMBLE COUVERCLE LATERA

	P2R reference	194805
	Maker reference	00G00515691

00G00515691 - R-S-ENSEMBLE COUVERCLE LATERA

	P2R reference	194806
	Maker reference	00G00515692

00G00515692 - R-S-ENSEMBLE COUVERCLE LATERA

	P2R reference	194807
	Maker reference	00G06800494

00G06800494 - RENFORT POST. UNION COUVERCLES

	P2R reference	194808
	Maker reference	00G06800495

00G06800495 - TAPETA POST.UN.TAP.LAT.AZ.END.

	P2R reference	194809
	Maker reference	00G00603164

00G00603164 - PART ARRIERE SELLE

	P2R reference	194810
	Maker reference	00G00603165

00G00603165 - TAPA SUP.PILOTO AZ.ENDR. PREDA

	P2R reference	194811
	Maker reference	00G01801442C5

00G01801442C5 - POIGNEE GAUCHE PREDAT

	P2R reference	194812
	Maker reference	00G01811441

00G01811441 - POIGNEE GAUCHE GR. CIRC.

	P2R reference	194813
	Maker reference	00G04901732

00G04901732 - POIGNÉE DROITE

	P2R reference	194814
	Maker reference	00G04911731

00G04911731 - POIGNÉE DROITE CIRC.

	P2R reference	65448
	Maker reference	0186405

SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640

	P2R reference	187384
	Maker reference	00G00704141

00G00704141 - GARDE-BOUE ARRIERE

	P2R reference	194815
	Maker reference	00G00706341

00G00706341 - SUPPLÉMENT GARDEBOUE ARRIERE P

	P2R reference	194816
	Maker reference	00G06300062

00G06300062 - ADHESIF CADENAS

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	194817
	Maker reference	00G01803941

00G01803941 - ADHESIF C.I.S. PREDATOR

	P2R reference	194818
	Maker reference	00G01800922

00G01800922 - ADHESIF COUVERCLE REGULAEUR C

	P2R reference	194819
	Maker reference	00G01502402

00G01502402 - ADHESIF INFERIEURE DROITE COUU

	P2R reference	194820
	Maker reference	00G04902542

00G04902542 - ADHESIF INFERIEUR GAUCHE COUVU

	P2R reference	63676
	Maker reference	000110314015

00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64277
	Maker reference	00H00600681

ENSEMBLE LOCK SEAT REAR OEM DERBI 50 GPR 2001 > 2013-00H00600681

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	71830
	Maker reference	AP8150170

SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	194821
	Maker reference	00G00505221

00G00505221 - ADHESIF SUPERIEUR COUVERCLE LB

	P2R reference	194822
	Maker reference	00G00505222

00G00505222 - ADHESIF SUPERIEUR COUVERCLE LB

	P2R reference	194823
	Maker reference	00G00505651

00G00505651 - ADHESIF SUPERIEUR COUVERCLE LB

	P2R reference	194824
	Maker reference	00G00505652

00G00505652 - ADHESIF SUPERIEUR COUVERCLE LB

	P2R reference	194825
	Maker reference	00G04601731

00G04601731 - ADHESIF

	P2R reference	194826
	Maker reference	00G04601732

00G04601732 - CALCA DT.DR.QUILLA PR.O2 AZ 01

	P2R reference	194827
	Maker reference	00G04601742

00G04601742 - CALCA DT.IZ.QUILLA PR.O2 AZ 01

	P2R reference	194828
	Maker reference	00G04601741

00G04601741 - ADHESIF

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	65345
	Maker reference	0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

	P2R reference	65366
	Maker reference	0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

	P2R reference	67113
	Maker reference	575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

	P2R reference	194829
	Maker reference	00G02206971

00G02206971 - TAPA PROTECCION DEPOSITO GP1

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	187525
	Maker reference	00H04900231

00H04900231 - CALQUE DERBI 8 FOIS
