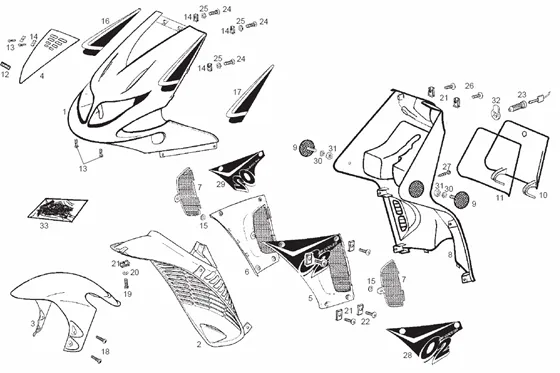

Vehicle Exploded View - DERBI GP 50 GP Series O2 Export 2001 (EMEA)

	P2R reference	194772
	Maker reference	00G04936082C

00G04936082C - ECU FRONTAL

	P2R reference	194773
	Maker reference	00G04936081

00G04936081 - ECU FRONTAL

	P2R reference	194774
	Maker reference	00G00700342

00G00700342 - GARDEBOUE DROIT INT. GR.PART.

	P2R reference	194775
	Maker reference	00G00712023

00G00712023 - GARDE BOUE AV.

	P2R reference	194776
	Maker reference	00G007120215

00G007120215 - GARDE BOUE AV.

	P2R reference	194777
	Maker reference	00G01500722

00G01500722 - ENJOLIVEUR

	P2R reference	194778
	Maker reference	00G04406832

00G04406832 - R-SOUS-ENSEMBLE LAT. GAUCHE

	P2R reference	194779
	Maker reference	00G04406831

00G04406831 - R-SOUS-ENSEMBLE LAT. GAUCHE

	P2R reference	194780
	Maker reference	00G04406801

00G04406801 - R-SOUS-ENSEMBLE LAT. DROIT

	P2R reference	194781
	Maker reference	00G04406802

00G04406802 - R-SOUS-ENSEMBLE LAT. DROIT

	P2R reference	194782
	Maker reference	00G03801301

00G03801301 - GRILLE LAT.RADIATEUR PREDATOR

	P2R reference	194783
	Maker reference	00G04901762

00G04901762-INTER. ECU FR.

	P2R reference	194784
	Maker reference	00G04402751

00G04402751 - CATADIOPTRES LAT. JAUNE PRED.

	P2R reference	194785
	Maker reference	00G05901912

00G05901912 - COUVRE COFFRE PREDATOR

	P2R reference	187360
	Maker reference	00G05902621

00G05902621 - JOINT COUVERCLE COFFRE

	P2R reference	187638
	Maker reference	00F04601121

00F04601121 - ADHESIF DERBI

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	188131
	Maker reference	00H00600991

00H00600991 - RONDELLE

	P2R reference	194786
	Maker reference	00G04602201

00G04602201 - ADHESIF

	P2R reference	194787
	Maker reference	00G04602202

00G04602202 - ADHESIF

	P2R reference	194788
	Maker reference	00G04602211

00G04602211 - ADHESIF

	P2R reference	194789
	Maker reference	00G04602212

00G04602212 - ADHESIF

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	72330
	Maker reference	AP8224470

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

	P2R reference	64277
	Maker reference	00H00600681

ENSEMBLE LOCK SEAT REAR OEM DERBI 50 GPR 2001 > 2013-00H00600681

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	63682
	Maker reference	000110516015

00011051601 - VIS TARAUD 5,1X16 NOIR CL89H

	P2R reference	194790
	Maker reference	00G04909492

00G04909492 - ADHESIF

	P2R reference	194791
	Maker reference	00G04909491

00G04909491 - ADHESIF

	P2R reference	194792
	Maker reference	00G04909502

00G04909502 - ADHESIF

	P2R reference	194793
	Maker reference	00G04909501

00G04909501 - ADHESIF

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	187478
	Maker reference	00G00601141

00G00601141-LEVER LATCH SEAT

	P2R reference	194794
	Maker reference	00G05138651

00G05138651 - JEU ADHESIFS

	P2R reference	194795
	Maker reference	00G05138652

00G05138652 - JEU ADHESIFS
