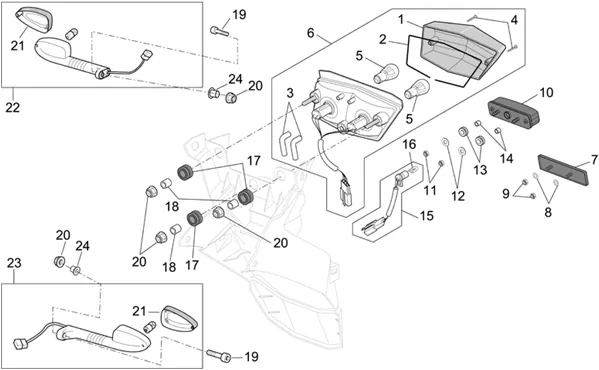

Chassis : 28.39 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.39.PNG)
1 |
AP8127170 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
2 |
AP8127166 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
AP8127171 - PIPETTE DE VENTILATION More informationQuantity required : 2 |
||||||
|
4 |
Vis taraud |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
5 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 2 |
||||||
|
6 |
AP8124583 - FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
7 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
8 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
|
10 |
REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 RS, 1000 CAPONORD, 125-250-400-500 ATLANTIC/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8212702- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
12 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
13 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
14 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 2 |
||||||
|
15 |
AP8127072-WIRING LUMIERE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
16 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
17 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
18 |
SPACER (14X10X6. 6) OEM COMMON A LA RANGE PIAGGIO/APRILIA-AP8221017 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
19 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
20 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/6/img/71606.jpg)
21 |
CABOCHON DE INDICATOR OEM PIAGGIO APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE-AP8127552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/5/img/71605.jpg)
22 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817515 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/4/img/71604.jpg)
23 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/0/img/71500.jpg)
24 |
BUSH EN T (6. 5X8. 6X9) OEM PIAGGIO COMMON A LA RANGE-AP8121929 More informationQuantity required : 2 |
