Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

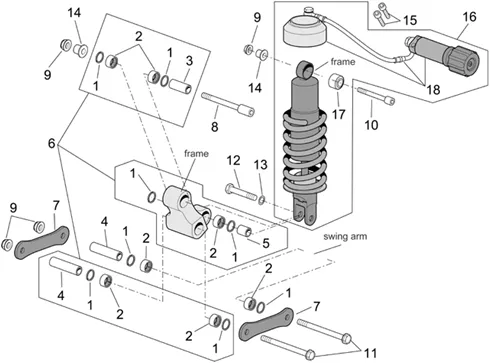

Chassis : 28.08 BIELLETTE ET AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.08.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.jpg)
1 |
OIL SEAL (18X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8110068 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/9/img/71269.jpg)
2 |
ROLLER CAGE (18X24X16) OEM APRILIA COMMON A LA RANGE-AP8110066 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/9/img/71719.jpg)
3 |
BUSH/SPACER (10) L40 OEM PIAGGIO COMMON A LA RANGE-AP8135924 More informationQuantity required : 1 |
||||||
4 |
AP8121315-SPINDLE BIELLE DOUBLE More informationQuantity required : 2 |
||||||
|
5 |
SPINDLE ARTICULATION BIELLE D'AMORTISSEUR OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, STELVIO, GRISO, BELLAGIO/APRILIA PEGASO, CAPONORD-AP81356085 More informationQuantity required : 1 |
||||||
|
6 |
AP8146192 - DOUBLE BIELLETTE; More informationQuantity required : 1 |
||||||
|
7 |
AP8146193 - BIELLE SIMPLE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/9/img/71979.jpg)
8 |
SCREW BTR (10X82) DE BIELETTE REAR SHOCK ABSORBER OEM MOTO GUZZICOMMUN A LA RANGE-AP8152397 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 4 |
||||||
|
10 |
AP8150458-SCREW More informationQuantity required : 1 |
||||||
|
11 |
AP8152396-SCREW More informationQuantity required : 2 |
||||||
|
12 |
AP8152147-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
13 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/9/img/71439.jpg)
14 |
BUSH EN T (D10) OEM PIAGGIO COMMON A LA RANGE-AP8121155 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
15 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 2 |
||||||
|
16 |
AP8163378 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
17 |
AP8144466 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
18 |
AP8163084 - PRECHARGE More informationQuantity required : 1 |
