Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

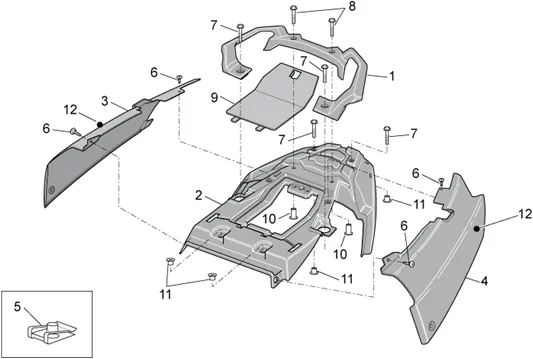

Chassis : 28.15 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.15.PNG)
1 |
AP8158887 - POIGNEE PASS.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8158886 - PORTE-BAGAGES GRIS; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178399 - FIANCATINA DX V.BLU H.OP.20GL More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178411 - FIANCATINA DX V.GRIGIO STRONG More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178430 - FIANCATINA DX VERNICIATA More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178982 - FIANCATINA DX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
3 |
AP8179384 - FIANCATINA DX V.GR.SH.OP.N/DEC More informationQuantity required : 1 |
|||||||||
|
4 |
AP8178400 - FIANCATINA SX V.BLU H.OP.20GL More informationQuantity required : 1 |
|||||||||
|
4 |
AP8178412 - FIANCATINA SX V.GRIGIO STRONG More informationQuantity required : 1 |
|||||||||
|
4 |
AP8178431 - FIANCATINA SX VERNICIATA More informationQuantity required : 1 |
|||||||||
|
4 |
AP8178983 - FIANCATINA SX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
4 |
AP8179385 - FIANCATINA SX V.GR.SH.OP.N/DEC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
6 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
7 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
8 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 2 |
|||||||||
|
9 |
AP8139630-COUV. DOOR-BAG., GREY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/5/1/img/46851.jpg)
10 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121509 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/8/img/71468.jpg)
11 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121510 More informationQuantity required : 4 |
|||||||||
|
12 |
AP8166790-DECAL " ETV 1000 " FIANC. DX-SX More informationQuantity required : 2 |
|||||||||
