Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

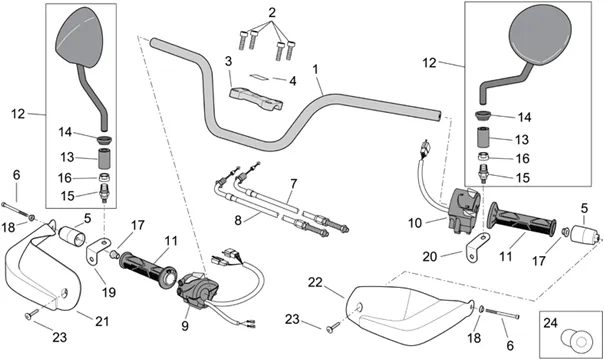

Chassis : 28.18 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.18.PNG)
1 |
AP8118691 - MANUBRIO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
2 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170 More informationQuantity required : 4 |
|||||||||
|
3 |
HANDLEBAR HOLDER "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007 -AP8163218- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
4 |
STICKER/STICKER/GRAPHIC " APRILIA " OEM PIAGGIO APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2-AP8157770 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/5/img/71235.jpg)
5 |
HANDLEBAR END OEM APRILIA 1000 CAPONORD 2001 > 2007/MOTO GUZZI 1200 STELVIO 2009 > 2017-AP8104627 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/5/img/71865.jpg)
6 |
SCREW BTR (6X70) OEM PIAGGIO COMMON A LA RANGE-AP8150342 More informationQuantity required : 2 |
|||||||||
|
7 |
AP8114375 - CABLE OUVERTURE GAZ; More informationQuantity required : 1 |
|||||||||
|
8 |
AP8114376 - CABLE FERMETURE GAZ; More informationQuantity required : 1 |
|||||||||
|
9 |
AP8127110 - DEVIATEUR FEUX DTE More informationQuantity required : 1 |
|||||||||
|
10 |
AP8124984 - DEVIATEUR FEUX GCHE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/6/9/img/46369.jpg)
11 |
THROTTLE HANDLE+ HAND GRIPS "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8118619- More informationQuantity required : 1 |
|||||||||
|
12 |
MIRROR- RIGHT/LEFT "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2003 -CM178902- More informationQuantity required : 2 |
|||||||||
|
13 |
AP8106911-RUBBER MIROIR More informationQuantity required : 2 |
|||||||||
|
14 |
AP8201843-PROTECTOR BORNE More informationQuantity required : 2 |
|||||||||
|
15 |
AP8201842-BORNE MOUNTING MIROIR More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/0/2/img/55402.jpg)
16 |
BUSH FOR BORNE MIRROR OEM APRILIA PEGASO-AP8201856 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
17 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/9/img/71489.jpg)
18 |
WASHER FAIRING OEM PIAGGIO APRILIA 50-125 RS, RX, SX, 1000 CAPONORD/MOTO-GUZZI 1200 STELVIO-AP8121819 More informationQuantity required : 2 |
|||||||||
|
19 |
AP8134941-PIASTRINA FISS. PARAMANI DX More informationQuantity required : 1 |
|||||||||
|
20 |
AP8134942-PIASTRINA FISS. PARAMANI SX More informationQuantity required : 1 |
|||||||||
|
21 |
Prot.mains d.,bleue |
|||||||||
|
21 |
AP8178409 - PARAMANI DX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
21 |
AP8178428 - PARAMANI DX VERNICIATO More informationQuantity required : 1 |
|||||||||
|
22 |
AP8178398 - PARAMANI SX V.BLU HILTON More informationQuantity required : 1 |
|||||||||
|
22 |
AP8178410 - PARAMANI SX V.GRIGIO DUST More informationQuantity required : 1 |
|||||||||
|
22 |
AP8178429 - PARAMANI SX VERNICIATO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
23 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
23 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
24 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 1 |
|||||||||
