Vehicle Exploded View - APRILIA ETV 1000 Capo Nord 2004-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

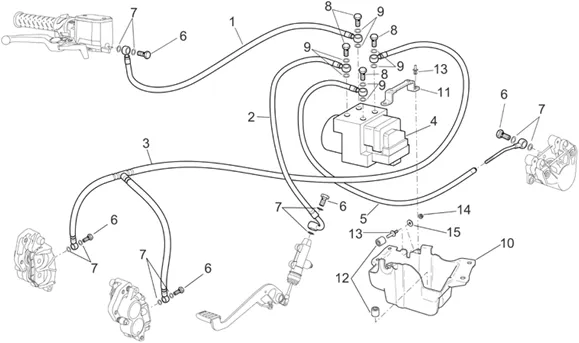

Chassis : 28.19 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/294/ETV_1000_Capo_Nord_2004-2007_28.19.PNG)
1 |
AP8133637 - POMPA ANTERIORE ABS More informationQuantity required : 1 |
||||||
|
2 |
AP8133639 - POMPA POSTERIORE ABS More informationQuantity required : 1 |
||||||
|
3 |
AP8133638 - PINZE ANTERIORE ABS More informationQuantity required : 1 |
||||||
|
4 |
AP8127506 - CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
5 |
AP8133640-PINZA POSTERIORE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 5 |
||||||
|
8 |
AP8133644 - RACCORDO M12 More informationQuantity required : 2 |
||||||
|
9 |
GUARNIZIONE PER RACCORDO M12 |
||||||
|
10 |
AP8127472 - SUPPORTO CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
11 |
AP8134950 - STAFFA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
12 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087 More informationQuantity required : 2 |
||||||
|
13 |
AP8120317 - RIVET EN PLASTIQUE NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
14 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
|
14 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
15 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
