Vehicle Exploded View - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

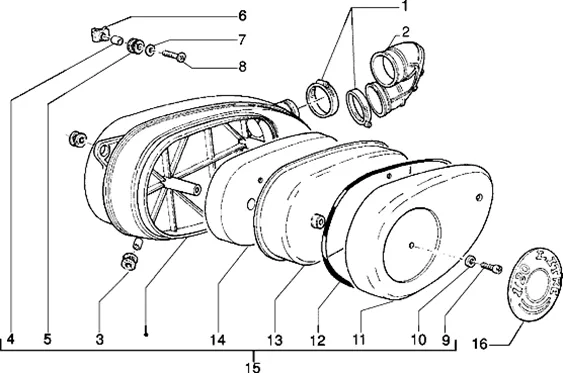

Moteur : T23 BOITE FILTRE A AIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
1 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
2 |
MANCHON |
||||||
|
3 |
257301-BUFFER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/9/img/66019.jpg)
4 |
BUSH SPACER (7X10X10) OEM PIAGGIO COMMON A LA RANGE-257302 More informationQuantity required : 2 |
||||||
|
5 |
939278-BUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/3/img/65793.jpg)
7 |
WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/2/img/65392.jpg)
8 |
SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-015759 More informationQuantity required : 2 |
||||||
|
9 |
VIS |
||||||
|
10 |
RONDELLE |
||||||
|
11 |
COUVERCLE |
||||||
|
12 |
JOINT |
||||||
|
13 |
COUVERCLE INTERIEUR |
||||||
|
14 |
432561 - ELEMENT More informationQuantity required : 1 |
||||||
|
15 |
FILTRE AIR COMPLET |
||||||
|
16 |
463615 - PLAQUE DECORATIVE More informationQuantity required : 2 |
