Vehicle Exploded View - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

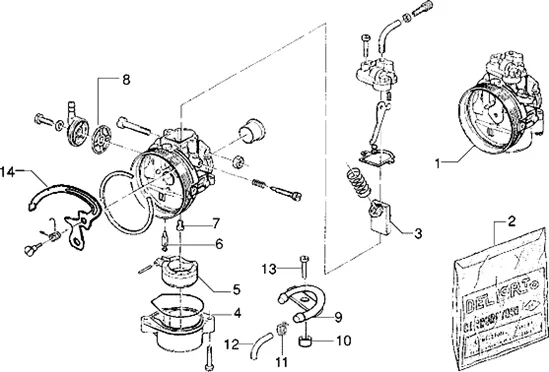

Moteur : T15 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T15.PNG)
1 |
CARBURATEUR |
||||||
|
2 |
SERIE DE JOINTS CARB |
||||||
|
3 |
VOLET DE GAZ |
||||||
|
4 |
CUVE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/0/6/img/68506.JPG)
5 |
CARBURETTOR FLOAT SHB 18/16 OEM PIAGGIO THREE-WHEELER APE 50-813173 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/7/img/65997.jpg)
6 |
POINTEAU CARBURETTOR OEM PIAGGIO 50 CIAO/GILERA 50 GSM, EAGLET 1998 > 2005/APRILIA 50 CLASSIC, MX 1998 > 2005-247653 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/9/img/65689.jpg)
8 |
FUEL FILTER OEM APRILIA 50-125 COMMON A LA RANGE MOTO 2005 </PIAGGIO THREE-WHEELER APE 50, TM 703 FUEL-099315 More informationQuantity required : 1 |
||||||
|
9 |
SUPPORT CARBU 50 RK |
||||||
|
10 |
ENTRETOISE |
||||||
|
11 |
COLLIER |
||||||
|
12 |
TUYAU |
||||||
|
13 |
VIS |
||||||
|
14 |
813172 - LEVIER DE GAZ More informationQuantity required : 1 |
