Vehicle Exploded View - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

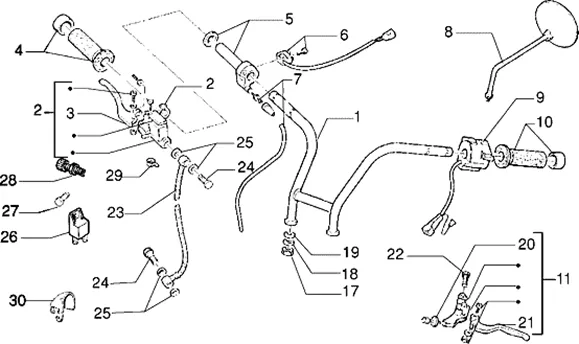

Guidon : T27 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T27.PNG)
1 |
GUIDON |
||||||
|
2 |
POMPE FREIN |
||||||
|
3 |
LEVIER FREIN |
||||||
|
4 |
297392 - POIGNEE DROITE More informationQuantity required : 1 |
||||||
|
5 |
463631 - COMMANDE DE GAZ More informationQuantity required : 1 |
||||||
|
6 |
294514 - POUSSOIR DEMARREUR More informationQuantity required : 1 |
||||||
|
7 |
Tr. gaz. desd. |
||||||
|
8 |
RETROVISEUR DROIT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/7/3/5/img/78735.jpg)
8 |
MIRROR- LEFT "PIAGGIO GENUINE PART" GILERA 50 EAGLET -463549 More informationQuantity required : 1 |
||||||
|
9 |
294513 - COMMUTATEUR FEU More informationQuantity required : 1 |
||||||
|
10 |
297391 - POIGNEE GAUCHE More informationQuantity required : 1 |
||||||
|
11 |
SUPPORT LEVIER G |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/5/img/65375.jpg)
17 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-015235 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/0/img/65370.jpg)
18 |
WASHER PLATE (10X30X2) OEM PIAGGIO COMMON A LA RANGE-013962 More informationQuantity required : 4 |
||||||
|
19 |
RONDELLE |
||||||
|
20 |
TENDEUR |
||||||
|
21 |
LEVIER D'EMBRAYAGE |
||||||
|
22 |
|
||||||
|
23 |
TUYAU HUILE FREIN |
||||||
|
24 |
VIS |
||||||
|
25 |
JOINT |
||||||
|
26 |
MICROTELERUPTEUR |
||||||
|
27 |
951634-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
28 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
|
29 |
307166-CLAMP More informationQuantity required : 1 |
||||||
|
30 |
PROTECTION |
