Vehicle Exploded View - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

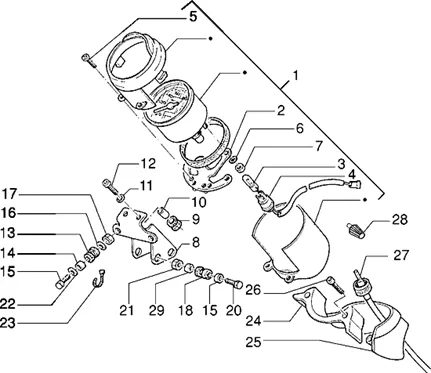

Guidon : T33 COMPTEUR KILOMETRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T33.PNG)
1 |
463164 - COMPTEUR More informationQuantity required : 1 |
||||||
|
2 |
SUPPORT COMPTEUR |
||||||
|
3 |
|
||||||
|
4 |
PORTE LAMPE |
||||||
|
5 |
008437-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
6 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
7 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 2 |
||||||
|
8 |
463163 - SUPPORT More informationQuantity required : 1 |
||||||
|
9 |
SILENTBLOC |
||||||
|
10 |
ENTRETOISE |
||||||
|
11 |
006126-WASHER More informationQuantity required : 2 |
||||||
|
12 |
031059 - BOULON S03105900 More informationQuantity required : 2 |
||||||
|
13 |
SILENTBLOC |
||||||
|
14 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/6/img/65606.jpg)
15 |
SCREW TH (5X33) OEM PIAGGIO COMMON A LA RANGE-030039 More informationQuantity required : 2 |
||||||
|
16 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
17 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-012112 More informationQuantity required : 2 |
||||||
|
18 |
PASSE CABLE |
||||||
|
19 |
RONDELLE |
||||||
|
20 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
21 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 2 |
||||||
|
22 |
003055-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/7/img/65927.jpg)
23 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-216983 More informationQuantity required : 2 |
||||||
|
24 |
292745 - PROTECTION COMPTEUR More informationQuantity required : 1 |
||||||
|
25 |
PROTECTION ARR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
26 |
SCREW AUTOTARAUDEUSE (4X35) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-265636 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/0/2/img/79902.jpg)
27 |
563284-TRANS INSTRUMENT CLUSTER EX 463146 More informationQuantity required : 1 |
||||||
|
28 |
292805-BUTTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
29 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
