Vehicle Exploded View - GILERA EAGLET 50 Automatic 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

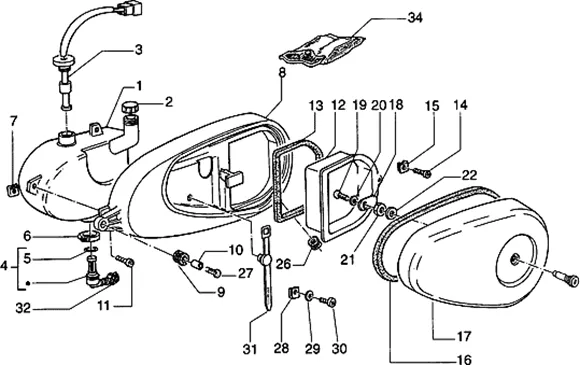

Châssis : T24 RESERVOIR D'HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/672/Eaglet_Automatic_1998-2005_T24.PNG)
1 |
951642 - RESERVOIR D'HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/4/7/0/img/76470.jpg)
2 |
218677 - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
292596 - JAUGE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/5/img/67105.jpg)
4 |
FITTING TANK OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-574362 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
5 |
GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
6 |
CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
|
8 |
463546 - BOITE PORTE OUTILS More informationQuantity required : 1 |
||||||
|
9 |
257301-BUFFER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/9/img/66019.jpg)
10 |
BUSH SPACER (7X10X10) OEM PIAGGIO COMMON A LA RANGE-257302 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
11 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
|
12 |
PORTE INSPECTION |
||||||
|
13 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
14 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 1 |
||||||
|
15 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
|
16 |
JOINT |
||||||
|
17 |
COUVERCLE BOITE OUTI |
||||||
|
18 |
VERROU DE SERRURE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
19 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644 More informationQuantity required : 1 |
||||||
|
20 |
RONDELLE |
||||||
|
21 |
ECROU |
||||||
|
22 |
RONDELLE |
||||||
|
26 |
939278-BUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/2/img/65392.jpg)
27 |
SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-015759 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
28 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/3/img/65793.jpg)
29 |
WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/4/img/65394.jpg)
30 |
SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A LA RANGE-015761 More informationQuantity required : 1 |
||||||
|
31 |
COLLIER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
32 |
HOSE CLAMP HOSE (6X9) OEM PIAGGIO COMMON A LA RANGE-CM002902 More informationQuantity required : 1 |
||||||
|
33 |
813225 - TUYAU More informationQuantity required : 1 |
||||||
|
34 |
Trousse { outils |
