Vehicle Exploded View - GILERA DNA 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

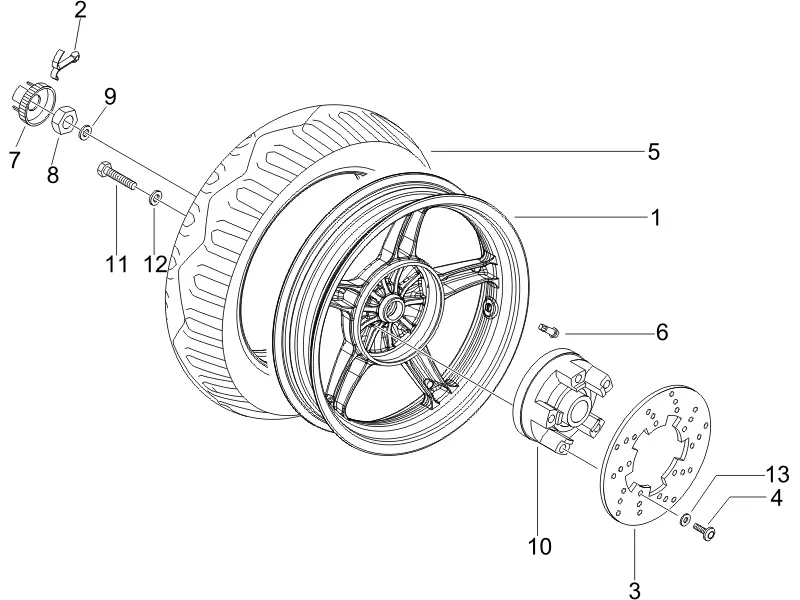

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/169/DNA_50_2006-152.png)
1 |
56475500GO - ROUE ARIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
2 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/0/img/67040_20260413172022.jpg)
3 |
BRAKE DISC SCOOT OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA S 2007 >, PRIMAVERA 2013 >, FLY 2005 >, 50 ZIP SP 2006 >, 125 VESPA PX 2001 > FRONT-56395R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/5/img/66135.jpg)
4 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-274369 More informationQuantity required : 5 |
|||||||||
|
5 |
TYRE FOR SCOOT 14'' 140/70-14 MICHELIN CITY GRIP REAR TL 68S REINF More informationQuantity required : 1 |
|||||||||
|
5 |
PNEU 140/70-14 PIRELLI |
|||||||||
|
5 |
PNEU 140/70-14 SAVA |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
6 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
7 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
|||||||||
|
7 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
8 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/2/img/66122.jpg)
9 |
WASHER (16X34, 8X2, 2) REAR WHEEL OEM PIAGGIO COMMON A LA RANGE-273099 More informationQuantity required : 1 |
|||||||||
|
10 |
564679 - MOYEU AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
11 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
12 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
13 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 5 |
|||||||||
