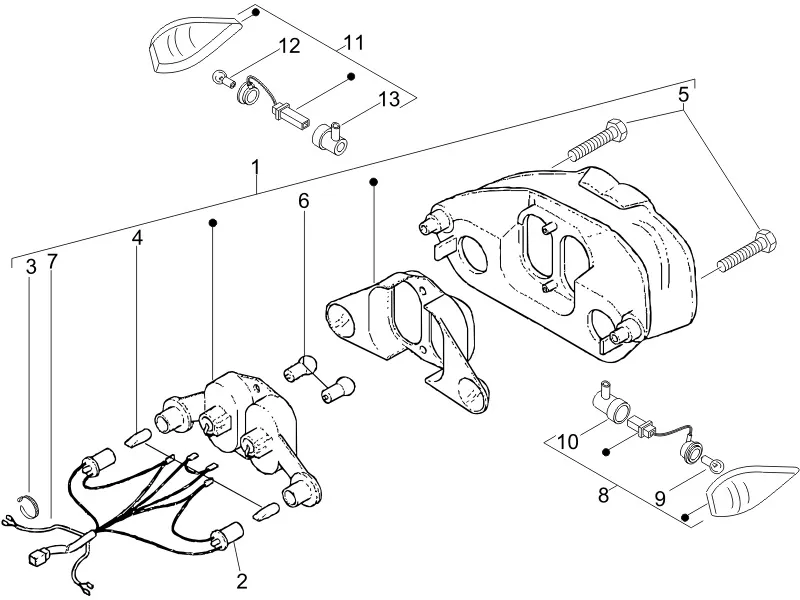

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/169/DNA_50_2006-164.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/4/8/img/81648.jpg)
1 |
581809-LAMP AVR. More informationQuantity required : 1 |
||||||
2 |
250522 - CACHE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
3 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
4 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/1/img/66291.jpg)
5 |
SCREW CRUCIFORME (5X30) ORIGIINE PIAGGIO COMMON A LA RANGE-296324 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
6 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
|
7 |
FAISCEAU DES CABLES DNA FEU ARRIERE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/4/6/img/81646.jpg)
8 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" GILERA 50-125 DNA -581805- More informationQuantity required : 1 |
||||||
|
9 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/4/3/img/76943.jpg)
10 |
DOOR AMPOULE DE INDICATOR OEM PIAGGIO 50 ZIP, VESPA ET2, 125 VESPA ET4, HEXAGON, SKIPPER/GILERA 50-125 DNA-250521 More informationQuantity required : 1 |
||||||
|
11 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 DNA -581807- More informationQuantity required : 1 |
||||||
|
12 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
|
13 |
DOOR AMPOULE DE INDICATOR OEM PIAGGIO 50 ZIP, VESPA ET2, 125 VESPA ET4, HEXAGON, SKIPPER/GILERA 50-125 DNA-250521 More informationQuantity required : 1 |
