Vehicle Exploded View - GILERA DNA 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

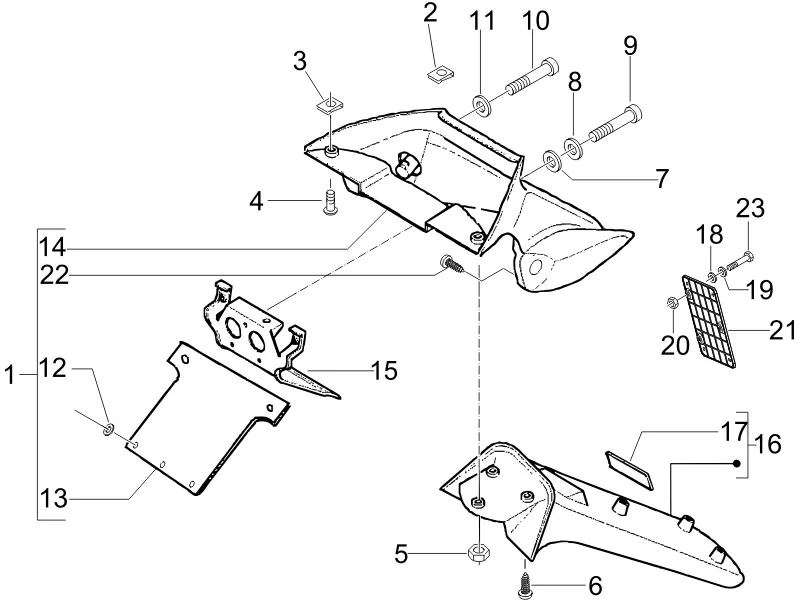

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/169/DNA_50_2006-104.png)
1 |
970129000C - PROTECTION ARIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
2 |
NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
4 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
5 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
6 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
7 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
8 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
9 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
10 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
|
11 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/4/img/63774.jpg)
12 |
WASHER PLATE (3. 3X6. 6X0. 5) OEM PIAGGIO COMMON A LA RANGE-003053 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/7/6/img/81776.jpg)
13 |
MUD FLAP - UNDER SEAT "PIAGGIO GENUINE PART" GILERA 50 DNA -582559- More informationQuantity required : 1 |
||||||
|
15 |
970150 - PLAQUE More informationQuantity required : 1 |
||||||
|
16 |
970200000C - PORTE PLAQUE More informationQuantity required : 1 |
||||||
|
17 |
CATADIOPTRE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
18 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
19 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
20 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/8/img/67968.jpg)
21 |
BRACKET DE PLATE IMMATRICCULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-642235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/2/img/67812.jpg)
21 |
DOOR PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-638833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
22 |
SCREW PARKER (3. 5X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015859 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
23 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
