Vehicle Exploded View - GILERA DNA 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

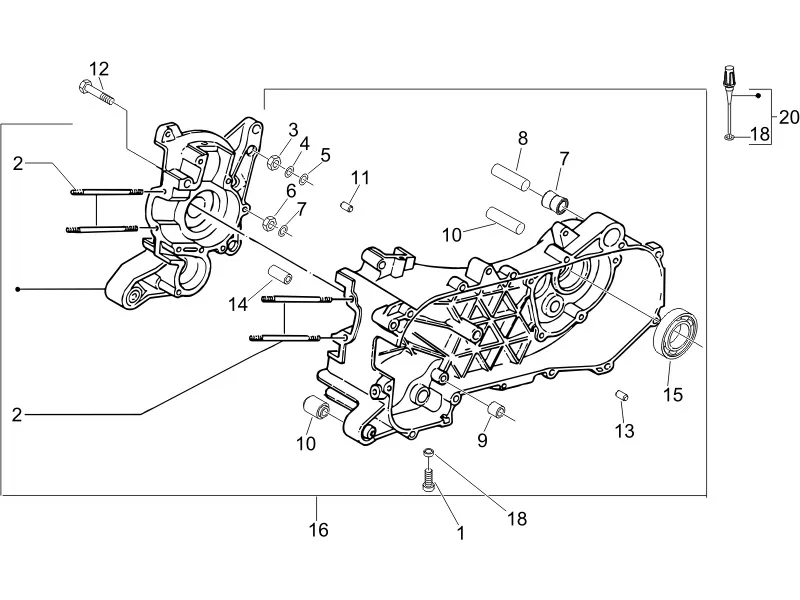

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/169/DNA_50_2006-023.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
1 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/2/img/70652.jpg)
2 |
STUD DE CYLINDER SCOOTER OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-1A003633R More informationQuantity required : 4 |
||||||
3 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/1/img/66181.jpg)
4 |
WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/8/img/65698.jpg)
5 |
WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/6/img/66066.jpg)
7 |
RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/4/img/66054.jpg)
8 |
SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/9/img/66469.jpg)
9 |
GASKET ETANCHEITE WATER PUMP OEM PIAGGIO 50 NRG 2005 >, ZIP SP 2006 >/GILERA 50 RUNNER 2005 >, DNA 2000 >/APRILIA 50 SR H2O 2000 > LIQUIDE-4352035 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/6/img/66056.jpg)
10 |
RUBBER MOUNT CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-266773 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
11 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
12 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
13 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
14 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
15 |
BEARING (17X40X12) SPINDLE PULLEY RECEPTRICE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC-435363 More informationQuantity required : 1 |
||||||
|
16 |
CM1275045 - CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
18 |
GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
19 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
20 |
JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130 More informationQuantity required : 1 |
