Vehicle Exploded View - GILERA DNA 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

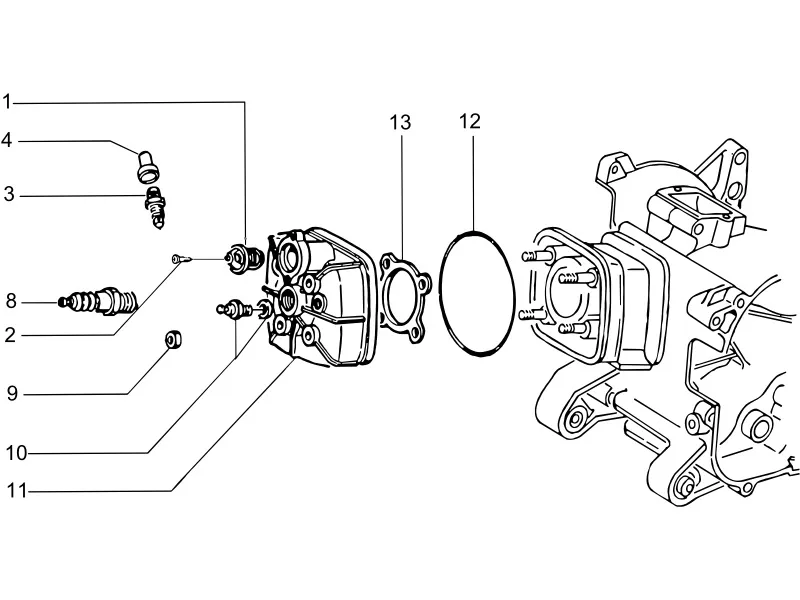

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/169/DNA_50_2006-032.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/1/img/66631.jpg)
1 |
CALORSTAT/THERMOSTAT OEM DERBI 50 SENDA 2003 >/PIAGGIO 50 NRG, ZIP LIQUIDE/GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR LIQUIDE-483395 More informationQuantity required : 1 |
|||||||||
2 |
256756-BOLT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
3 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
4 |
063435-CAPUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/8/img/66518.jpg)
8 |
SPARK PLUG CHAMPION RN1C OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC COOLING FLUID-438031 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
9 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/0/img/68590.jpg)
10 |
SONDE TEMPERATURE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-82622R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/4/img/68604.jpg)
11 |
CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, ZIP SP 2000>/GILERA 50 RUNNER, DNA 2000>/APRILIA 50 SR H2O 2004> -8264901 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/8/img/66628.jpg)
12 |
O-RING EXTERIEUR DE CYLINDER HEAD (NOUVELLE CYLINDER HEAD) OEM PIAGGIO 50 NRG, ZIP SP/GILERA 50 DNA, RUNNER/APRILIA 50 H2O-482988 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/9/img/66189.jpg)
13 |
CYLINDER HEAD GASKET INNER Ø40 OEM PIAGGIO 50 NRG, ZIP RST 1998 >/GILERA 50 RUNNER, DNA 1998 > LIQUIDE-288289 More informationQuantity required : 1 |
|||||||||
