Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Iniezione 1000 1990-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

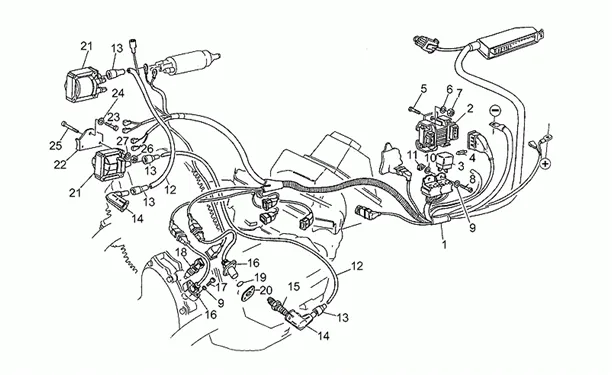

Chassis : 33.35 ALLUMAGE ELECTRONIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/482/California_III_Iniezione_1000_1990-1993_33.35.PNG)
1 |
|
||||||
|
2 |
GU29724460-MODULES DE PUISSANCE More informationQuantity required : 1 |
||||||
|
3 |
GU30732500 - RELAIS More informationQuantity required : 2 |
||||||
|
4 |
GU17742550 - FUSIBLE 16A More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
5 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 2 |
||||||
|
6 |
GU95100120 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
||||||
|
8 |
Vis |
||||||
|
9 |
GU95004205-WASHER More informationQuantity required : 6 |
||||||
|
10 |
GU93110060-RUBBER More informationQuantity required : 2 |
||||||
|
11 |
GU92660501-NUT EN CAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
12 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
13 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 4 |
||||||
|
14 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
|
15 |
BOUGIE |
||||||
|
16 |
Capteur phase et tours |
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
18 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
19 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
20 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 2 |
||||||
|
21 |
BOBINE |
||||||
|
22 |
|
||||||
|
23 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
24 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 2 |
||||||
|
25 |
|
||||||
|
26 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 4 |
||||||
|
27 |
GU95004205-WASHER More informationQuantity required : 4 |
