Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Iniezione 1000 1990-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

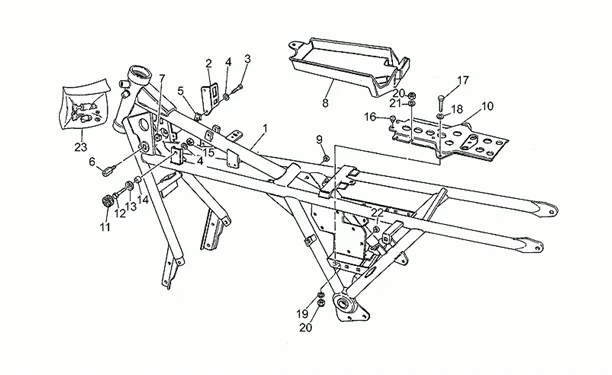

Chassis : 33.27 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/482/California_III_Iniezione_1000_1990-1993_33.27.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
GU98054312-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
4 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 6 |
||||||
|
5 |
GU28576590 - CLIP More informationQuantity required : 2 |
||||||
|
6 |
Goujon |
||||||
|
7 |
GU92660601-NUT EN CAGE More informationQuantity required : 2 |
||||||
|
8 |
|
||||||
|
9 |
GU93180080-CAP More informationQuantity required : 1 |
||||||
|
10 |
GU29418360-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
11 |
BUFFER DE FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU39103400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
12 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 2 |
||||||
|
13 |
GU391035005 - DISQUE More informationQuantity required : 2 |
||||||
|
14 |
GU91180605-SPACER More informationQuantity required : 2 |
||||||
|
15 |
GU92601206 - ECROU More informationQuantity required : 2 |
||||||
|
16 |
GU93180706-RUBBER More informationQuantity required : 4 |
||||||
|
17 |
GU98054416-SCREW M8X16 More informationQuantity required : 5 |
||||||
|
18 |
GU95004208 - RONDELLE More informationQuantity required : 5 |
||||||
|
19 |
GU95021108-WASHER ELASTIC More informationQuantity required : 3 |
||||||
|
20 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 5 |
||||||
|
21 |
GU95000208-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
22 |
BUFFER STAND LATERLE OEM MOTO GUZZI COMMON A LA RANGE-GU19705900 More informationQuantity required : 1 |
||||||
|
23 |
Serrure blocage direction |
