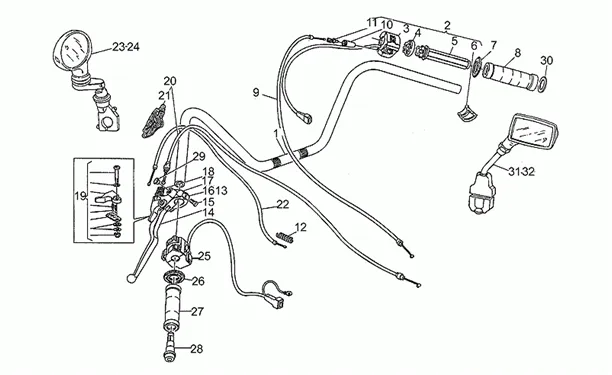

Chassis : 33.17 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/482/California_III_Iniezione_1000_1990-1993_33.17.PNG)
1 |
GUIDON |
||||||
|
2 |
GU19603480-COMANDO GAS More informationQuantity required : 1 |
||||||
|
3 |
GU19603480-COMANDO GAS More informationQuantity required : 1 |
||||||
|
4 |
GU27604415 - BLOC More informationQuantity required : 1 |
||||||
|
5 |
Corps mobile |
||||||
|
6 |
GU27604515-BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/3/4/img/130034.jpg)
7 |
BUSH OF GRIP OEM MOTO GUZZI COMMON A LA RANGE-GU27603620 More informationQuantity required : 1 |
||||||
|
8 |
GU27603520-GRIP DR * More informationQuantity required : 1 |
||||||
|
9 |
GU29117560 - CABLE COM GAZ More informationQuantity required : 1 |
||||||
|
10 |
GU27117615-CAPUCHON More informationQuantity required : 1 |
||||||
|
11 |
GU28607678 - VIS EMBRAYAGE More informationQuantity required : 2 |
||||||
|
12 |
GU94321070-SPRING More informationQuantity required : 1 |
||||||
|
13 |
Levier embrayage complet |
||||||
|
14 |
Levier embrayage complet |
||||||
|
15 |
GU27601215 - VIS More informationQuantity required : 2 |
||||||
|
16 |
GU27601015 - DEMI-COLLIER More informationQuantity required : 1 |
||||||
|
17 |
GU27601815 - CAVALIER LEVIER EMBR More informationQuantity required : 1 |
||||||
|
18 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
|
18 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
|
19 |
Levier |
||||||
|
20 |
GU29093070 - CABLE EMBRAYAGE M8X1,25 More informationQuantity required : 1 |
||||||
|
21 |
GU27663815-PROTECTOR More informationQuantity required : 1 |
||||||
|
22 |
GU29132860-CABLE DE STARTER More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
Déviateur feux gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/3/2/img/130032.jpg)
26 |
BUSH OF GRIP HANDLEBAR OEM MOTO GUZZI COMMON A LA RANGE-GU27603120 More informationQuantity required : 1 |
||||||
|
27 |
GU27603020 - POIGNEE GC. More informationQuantity required : 1 |
||||||
|
28 |
Masse antivibratile guidon |
||||||
|
29 |
GU93180080-CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/2/7/img/130427.jpg)
30 |
WASHER NYLON HANDLEBAR OEM MOTO GUZZI COMMON A LA RANGE-GU29606970 More informationQuantity required : 1 |
||||||
|
31 |
|
||||||
|
32 |
|
