Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Iniezione 1000 1990-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

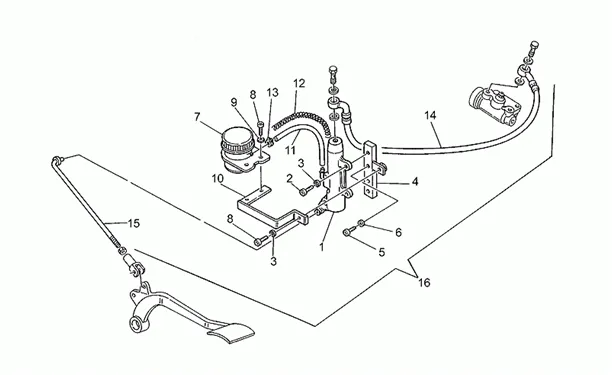

Chassis : 33.13 MODIF. POMPE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/482/California_III_Iniezione_1000_1990-1993_33.13.PNG)
1 |
GU31666990-MAIT. CYL. BRAKE REAR More informationQuantity required : 1 |
||||||
|
2 |
GU98622320-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
3 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 3 |
||||||
|
4 |
GU30666760-PLATE BRACKET More informationQuantity required : 1 |
||||||
|
5 |
GU98054412 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
7 |
GU65663500 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
|
8 |
GU98622310-SCREW More informationQuantity required : 3 |
||||||
|
9 |
GU95000206-WASHER More informationQuantity required : 2 |
||||||
|
10 |
GU30666060-PLAQ. RESERV. OIL More informationQuantity required : 1 |
||||||
|
11 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
12 |
GU30665860 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
13 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
|
14 |
GU30658561-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
|
15 |
GU03675170-TIRANT More informationQuantity required : 1 |
||||||
|
16 |
Kit pompe frein AR |
