Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Iniezione 1000 1990-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

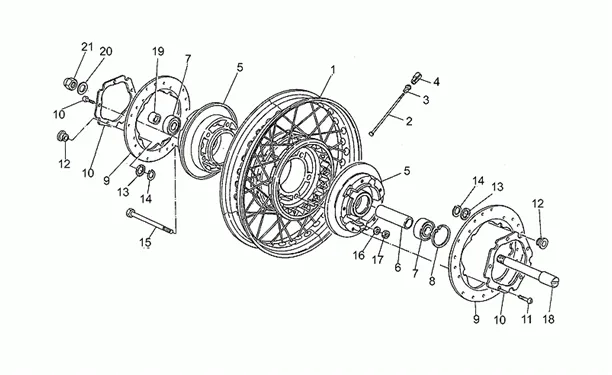

Chassis : 33.22 ROUE AV RAY.1991 D-CH-A
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/482/California_III_Iniezione_1000_1990-1993_33.22.PNG)
1 |
|
||||||
|
2 |
GU28611633 - RAYON LONG More informationQuantity required : 40 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/4/2/img/130242.jpg)
3 |
NUT DE SPOKE OEM MOTO GUZZI-GU28611733 More informationQuantity required : 40 |
||||||
|
4 |
GU12616101-CONTREPOIDS 15 GR. More informationQuantity required : 1 |
||||||
|
4 |
GU12616102-CONTREPOIDS 20 GR. More informationQuantity required : 1 |
||||||
|
4 |
GU12616103-CONTREPOIDS 30 GR. More informationQuantity required : 1 |
||||||
|
5 |
FLASQUE |
||||||
|
6 |
GU29615260-SPACER ROULEMENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
7 |
BEARING (20X47X14) DE WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU92204220 More informationQuantity required : 2 |
||||||
|
8 |
GU90272047-BUSH SEEGER 47X50, 5 More informationQuantity required : 1 |
||||||
|
9 |
Disque frein ext. |
||||||
|
10 |
Disque frein int. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/8/0/img/132980.jpg)
11 |
SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-GU98230825 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/2/4/4/img/130244.jpg)
12 |
BUSH MOUNTING BRAKE DISC FRONT OEM PIAGGIO MOTO-GUZZI 750 NEVADA, 1000 CALIFORNIA, LE-MANS, STRADA-GU28613560 More informationQuantity required : 10 |
||||||
|
13 |
GU28618860-SPRING A CUP More informationQuantity required : 10 |
||||||
|
14 |
GU90271022-BUSH SEEGER More informationQuantity required : 10 |
||||||
|
15 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
16 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 5 |
||||||
|
17 |
GU92630508 - ECROU More informationQuantity required : 5 |
||||||
|
18 |
AXE DE ROUE AV. |
||||||
|
19 |
GU29615660 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
20 |
GU95004217-WASHER 17X27X2 More informationQuantity required : 1 |
||||||
|
21 |
GU29616450 - ECROU More informationQuantity required : 1 |
