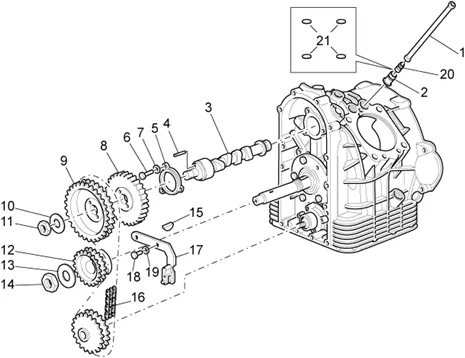

Moteur : 34.04 DISTRIBUTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_34.04.PNG)
1 |
GU03045030-ASTA More informationQuantity required : 4 |
||||||
|
2 |
GU03045832-BICCHIERINO PUNTERIA More informationQuantity required : 4 |
||||||
|
3 |
Arbre à cames |
||||||
|
3 |
GU03053333 - ALBERO CAMME PUNT.IDR. More informationQuantity required : 1 |
||||||
|
4 |
GU14234600-GOUPILLE More informationQuantity required : 1 |
||||||
|
5 |
GU010540016-FLANGE More informationQuantity required : 1 |
||||||
|
6 |
GU98084320-SCREW M6X20 More informationQuantity required : 3 |
||||||
|
7 |
GU95120065-WASHER 6, 5X11X2 More informationQuantity required : 3 |
||||||
|
8 |
976538-WHEEL FONICA DISTRIBUZION More informationQuantity required : 1 |
||||||
|
9 |
GU05054532-GEAR TIMING More informationQuantity required : 1 |
||||||
|
10 |
GU14433400-WASHER ELASTIC More informationQuantity required : 1 |
||||||
|
11 |
GU92750180-NUT More informationQuantity required : 1 |
||||||
|
12 |
GU14072001 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/9/img/132739.jpg)
13 |
WASHER PLATE (25, 5X35X2) OEM PIAGGIO COMMON A LA RANGE-GU95100837 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/7/9/img/132479.jpg)
14 |
NUT DE SPROCKET DE TIMING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU92602525 More informationQuantity required : 1 |
||||||
|
15 |
GU91702355-CLAVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/5/6/0/img/128560.jpg)
16 |
CHAIN DE TIMING OEM PIAGGIO MOTO-GUZZI COMMON AUX ENGINE A DEUX SOUPAPES PAR CYLINDER-GU05058030 More informationQuantity required : 1 |
||||||
|
17 |
GU30057810 - TENDEUR DE CHAINE More informationQuantity required : 1 |
||||||
|
18 |
GU98082435-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
20 |
887348 - PUNTERIA IDRAULICA More informationQuantity required : 4 |
||||||
|
21 |
GU03048330 - CALIBRATED TABLET More informationQuantity required : 4 |
