Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

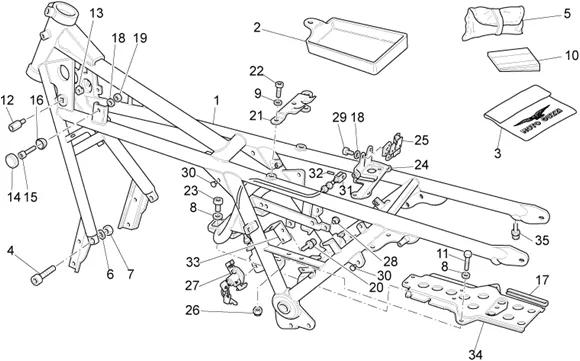

Chassis : 33.19 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.19.PNG)
1 |
977200 - TELAIO VINTAGE More informationQuantity required : 1 |
||||||
|
2 |
GU03479545 - SUPPORTO ATTREZZI More informationQuantity required : 1 |
||||||
|
3 |
GU30970200 - HOUSSE PROTECT.MOTO More informationQuantity required : 1 |
||||||
|
4 |
GU98683635-SCREW M12X35 More informationQuantity required : 2 |
||||||
|
5 |
GU03909960-TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
6 |
GU95022112-WASHER EVENT. More informationQuantity required : 2 |
||||||
|
7 |
GU92606312-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
8 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
9 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 2 |
||||||
|
10 |
GU03900072-LIVRET D'UTIL. ET ENTRET. I-GB-F-D More informationQuantity required : 1 |
||||||
|
11 |
GU98084416 - VIS More informationQuantity required : 3 |
||||||
|
12 |
GU03469200-STUD More informationQuantity required : 2 |
||||||
|
13 |
GU92660801-NUT EN CAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
14 |
BUFFER DE FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU39103400 More informationQuantity required : 2 |
||||||
|
15 |
GU98882316-SCREW More informationQuantity required : 2 |
||||||
|
16 |
GU391035005 - DISQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
17 |
GASKET PVC OEM MOTO GUZZI COMMON A LA RANGE-GU00823931080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
18 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
19 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 2 |
||||||
|
19 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 2 |
||||||
|
20 |
GU66468115-SCREW A ARRACHEMENT More informationQuantity required : 2 |
||||||
|
21 |
GU304613605 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
22 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
23 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 4 |
||||||
|
24 |
GU03462345-PLATE FISSAGGIO SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/7/4/6/img/130746.jpg)
25 |
SADDLE LOCK "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA -GU30462060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/9/img/132519.jpg)
26 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-GU92640508 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/8/7/6/img/100876.jpg)
27 |
KIT LOCK OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA-981069 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
28 |
BUFFER STAND LATERLE OEM MOTO GUZZI COMMON A LA RANGE-GU19705900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/4/img/73564.jpg)
29 |
SCREW (6X12) BOX OF SPEED OEM MOTO GUZZI COMMON A LA RANGE-GU98350312 More informationQuantity required : 2 |
||||||
|
30 |
GU93180080-CAP More informationQuantity required : 6 |
||||||
|
31 |
GU30462160 - TRANSMISSION DECROCHEMENT SELL More informationQuantity required : 1 |
||||||
|
32 |
GU95522508-GOUPILLE More informationQuantity required : 1 |
||||||
|
33 |
GU30463260-FLANGE More informationQuantity required : 1 |
||||||
|
34 |
GU29418360-PLATE More informationQuantity required : 1 |
||||||
|
35 |
GU03467343 - COLONNETTA More informationQuantity required : 1 |
