Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

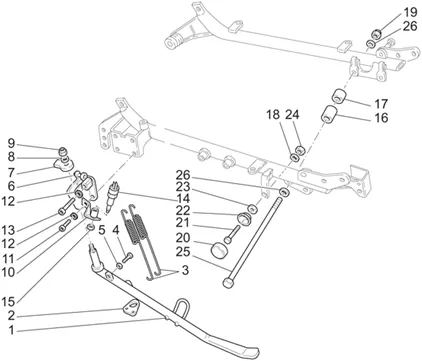

Chassis : 33.22 BEQUILLE LATERALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.22.PNG)
1 |
GU03432070 - CAVALLETTO LATERALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/7/img/151117.jpg)
2 |
SIDE STAND SUPPORT BRACKET SENSOR "PIAGGIO GENUINE PART" MOTO-GUZZI 1000-1100 CALIFORNIA, V50, V60, V75 -GU18432760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/6/6/img/102566.jpg)
3 |
SPRING SIDE STAND OEM MOTO GUZZI 1100 CALIFORNIA 2003 > 2012-GU03434070 More informationQuantity required : 2 |
||||||
|
4 |
GU98084216-SCREW CLUTCH More informationQuantity required : 1 |
||||||
|
5 |
GU92606205 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
GU03433470 - BLOCCHETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/5/9/img/102559.jpg)
7 |
GU03432740 - FERMO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
8 |
WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
9 |
GU92630110-NUT M10X1, 5 More informationQuantity required : 1 |
||||||
|
10 |
GU03433850 - STAFFA DI SUPPORTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
11 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
12 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 5 |
||||||
|
13 |
GU98680440-SCREW TCEI M8X40 More informationQuantity required : 1 |
||||||
|
14 |
GU03759150-INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/9/1/img/132491.jpg)
15 |
NUT (M8) OEM PIAGGIO COMMU A LA RANGE-GU92606508 More informationQuantity required : 1 |
||||||
|
16 |
GU03429765-SPACER SX More informationQuantity required : 1 |
||||||
|
17 |
GU03429865-SPACER DX More informationQuantity required : 1 |
||||||
|
18 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 1 |
||||||
|
19 |
GU92606312-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
20 |
BUFFER DE FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU39103400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
21 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 1 |
||||||
|
22 |
GU391035005 - DISQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
23 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 1 |
||||||
|
24 |
GU92630707-NUT M6X1 More informationQuantity required : 1 |
||||||
|
25 |
GU03429600-PERNO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/9/img/132689.jpg)
26 |
WASHER PLATE (13X24X2. 5) OEM PIAGGIO COMMON A LA RANGE-GU95008313 More informationQuantity required : 2 |
