Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

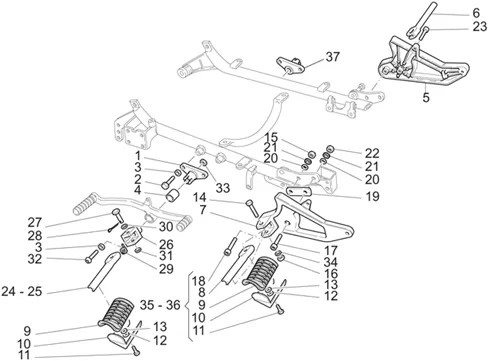

Chassis : 33.21 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.21.PNG)
1 |
GU03443960-BRACKET PEDANA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
2 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
3 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 6 |
||||||
|
4 |
GU03444230 - DISTANZIALE More informationQuantity required : 2 |
||||||
|
5 |
GU03443565 - PIASTRA DX GRIGIO More informationQuantity required : 1 |
||||||
|
6 |
GU23440710 - TUYAU REP.-PIEDS AV.D. More informationQuantity required : 1 |
||||||
|
7 |
GU03446065-PLATE SX GREY More informationQuantity required : 1 |
||||||
|
8 |
GU23441810-HOSE REP.-FEET AV. G. More informationQuantity required : 1 |
||||||
|
9 |
GU23443210 - PEDALE EN CAOUTCH. More informationQuantity required : 4 |
||||||
|
10 |
GU23441210 - PLAQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
11 |
SCREW TH (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98084314 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
12 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 4 |
||||||
|
13 |
GU91180602-SPACER More informationQuantity required : 4 |
||||||
|
14 |
GU03442200-SCREW FISS More informationQuantity required : 2 |
||||||
|
15 |
GU92606312-NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/9/img/132519.jpg)
16 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-GU92640508 More informationQuantity required : 2 |
||||||
|
17 |
GU98683635-SCREW M12X35 More informationQuantity required : 1 |
||||||
|
18 |
GU98681650-SCREW More informationQuantity required : 4 |
||||||
|
19 |
GU17444250-PLATE More informationQuantity required : 2 |
||||||
|
20 |
GU95100414-WASHER More informationQuantity required : 4 |
||||||
|
21 |
GU95022112-WASHER EVENT. More informationQuantity required : 4 |
||||||
|
22 |
GU92606512-NUT BAS M12X1, 25 More informationQuantity required : 1 |
||||||
|
23 |
GU98683640-SCREW M12X40 More informationQuantity required : 1 |
||||||
|
24 |
GU03440730-TUBO PORTA PEDANA DX More informationQuantity required : 1 |
||||||
|
25 |
GU03441830-TUBO PORTA PEDANA SX More informationQuantity required : 1 |
||||||
|
26 |
Support |
||||||
|
27 |
GU23442210-PIVOT * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/2/img/132762.jpg)
28 |
GOUPILLE (2. 2X26) OEM PIAGGIO COMMON A LA RANGE-GU95401215 More informationQuantity required : 2 |
||||||
|
29 |
GU03441130-MOLLA More informationQuantity required : 2 |
||||||
|
30 |
GU95100250-WASHER 8, 5X18X0, 5 More informationQuantity required : 2 |
||||||
|
31 |
GU95129130-WASHER ELASTIC More informationQuantity required : 2 |
||||||
|
32 |
GU98350450-SCREW More informationQuantity required : 2 |
||||||
|
33 |
GU92630708-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
34 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 2 |
||||||
|
35 |
GU23440210-COVER REP-FEET PASS. D More informationQuantity required : 1 |
||||||
|
36 |
GU23441310 - COUVERCLE REP-PIEDS PASS.G More informationQuantity required : 1 |
||||||
|
37 |
GU03443961-BRACKET PEDANA DX More informationQuantity required : 1 |
All the exploded views of this vehicle
-
