Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Alum Tit PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

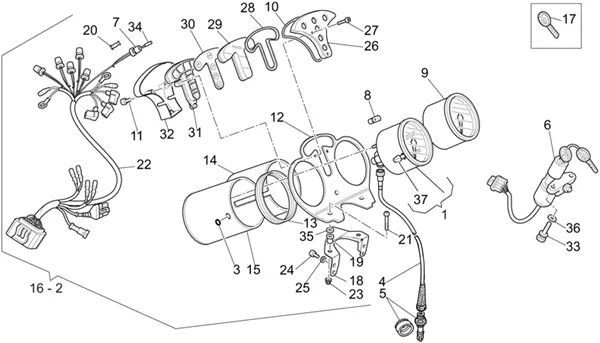

Chassis : 33.38 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/474/California_Alum_Tit_PI_Cat_1100_2003-2004_33.38.PNG)
1 |
GU03761570 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
1 |
Compteur kilométrique |
||||||
|
2 |
GU03760076 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
3 |
GU91551168-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/4/1/img/128341.jpg)
4 |
GU03760465 - CABLE COMPTEUR KM More informationQuantity required : 1 |
||||||
|
5 |
GU03762550-RENVOI INSTRUMENT CLUSTER KM More informationQuantity required : 1 |
||||||
|
6 |
GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
7 |
GU02768600-PORTALAMPADA More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
8 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
|
9 |
884171 - CONTAGIRI CALIFORNIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/4/7/img/128347.jpg)
10 |
GASKET PANEL DE EDGE OEM POTO GUZZI 1100 2003 > 2012-GU03762370 More informationQuantity required : 1 |
||||||
|
11 |
GU98872110-SCREW More informationQuantity required : 3 |
||||||
|
12 |
GU02764000 - BASE SUPPORTO STRUMENTI More informationQuantity required : 1 |
||||||
|
13 |
GU02762301-GOMMA More informationQuantity required : 2 |
||||||
|
14 |
GU03761970-BRACKET COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
15 |
GU03762070-BRACKET TACHY. More informationQuantity required : 1 |
||||||
|
16 |
GU03760074 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
17 |
GU30735500-CLE PAS CANTEE UNPAINTED More informationQuantity required : 1 |
||||||
|
18 |
GU01766031-BRACKET CRUSCOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
19 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 3 |
||||||
|
20 |
GU93400012 - PARTIE TERMINALE DOUILLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/8/1/img/126081.jpg)
21 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-GU98370609 More informationQuantity required : 3 |
||||||
|
22 |
GU03747270-WIRING PANEL DE EDGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
23 |
NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277 More informationQuantity required : 3 |
||||||
|
24 |
GU98692318-SCREW M6X18 More informationQuantity required : 4 |
||||||
|
25 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 4 |
||||||
|
26 |
GU03766265-COVER DOOR-TEMOINS GREY More informationQuantity required : 1 |
||||||
|
27 |
GU98872120-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/2/img/102342_20251023145219.jpg)
28 |
GASKET HOUSING TEMOIN INSTRUMENT CLUSTER OEM MOTO GUZZI V11 1999 > 2005-GU02768200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/3/img/102343.jpg)
29 |
PROTECTOR/MOUSSE DE HOUSING TEMOINS DE INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, V11, 750 NEVADA-GU02768400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/3/6/1/img/128361.jpg)
30 |
PANEL WITH LENSES "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 750 NEVADA, V11 -GU03781150 More informationQuantity required : 1 |
||||||
|
31 |
GU02766300 - SCATOLA PORTASPIE More informationQuantity required : 1 |
||||||
|
32 |
GU03766570-COVER INFERIEURE More informationQuantity required : 1 |
||||||
|
33 |
GU97260415-SCREW SPECIALE M8X15 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
34 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 6 |
||||||
|
35 |
GU95021206-WASHER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
36 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 2 |
||||||
|
37 |
GU03762870 - POUSSOIR RAZ More informationQuantity required : 1 |
