Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring ABS 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

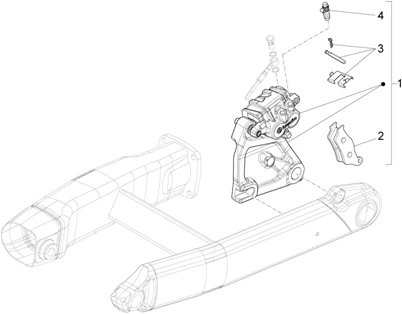

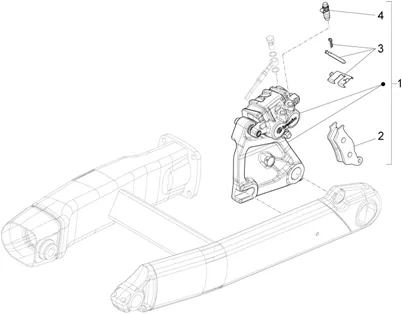

Système frein abs : 06.040 PINCE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/471/California_1400_Touring_ABS_2012-2014_06.040.PNG)
Search
1 |
887490-PINZA BRAKE POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/3/img/71313.jpg)
2 |
BRAKE PADS REAR OEM PIAGGIO MOTI-GUZZI CALIFORNIA 2012 >, AUDACE 2015 >, ELDORADO 2015 >, BELLAGIO (PAIRE)-AP8113627 More informationQuantity required : 1 |
||||||
|
3 |
B064120-(*) PERNI E MOLLE PINZA * More informationQuantity required : 1 |
||||||
|
4 |
AP8113755-PURGE AIR More informationQuantity required : 1 |
