Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring ABS 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

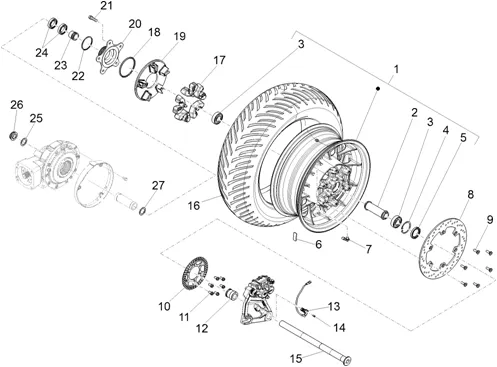

Roues : 05.020 ROUE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/471/California_1400_Touring_ABS_2012-2014_05.020.PNG)
1 |
887529-WHEEL POSTERIORE CON CUSCINETTI * More informationQuantity required : 1 |
||||||
|
2 |
887530-SPACER WHEEL POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/2/img/71272.jpg)
3 |
BEARING (25X52X15) DE REAR WHEEL (6205) OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4, 50-125 RS4, 900-1200 DORSODURO/GILERA 50 SMT, RCR 2018 >/MOTO GUZZI 1400 CALIFORNIA, AUDACE-AP8110093 More informationQuantity required : 2 |
||||||
|
4 |
CLIPS/CIRCLIPS (D52) OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125839 More informationQuantity required : 1 |
||||||
|
5 |
AP8125838-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
6 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
7 |
VALVE TUBELESS OEM MOTO GUZZI COMMON A LA RANGE-GU03617710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/2/6/img/99426.jpg)
8 |
BRAKE DISC REAR OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA, AUDACE, ELDORADO-887489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/8/img/130868.jpg)
9 |
SCREW BTR (8X25) MOUNTING BRAKE DISC REAR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU30611460 More informationQuantity required : 6 |
||||||
|
10 |
887875 - RUOTA FONICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
11 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 6 |
||||||
|
12 |
887495-SPACER EST WHEEL POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
13 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
13 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
14 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
|
15 |
886967-PERNO WHEEL POSTERIORE More informationQuantity required : 1 |
||||||
|
16 |
887575-COPERTURA POST 200/60-16X6 More informationQuantity required : 1 |
||||||
|
17 |
B064290-GOMMINO PARASTRAPPI More informationQuantity required : 5 |
||||||
|
18 |
GU90706664-BUSH More informationQuantity required : 1 |
||||||
|
19 |
887311-DISCO TRASCINAMENTO PARASTRAPPI More informationQuantity required : 1 |
||||||
|
20 |
2B000090-FLANGIA DISCO PARASTRAPPI More informationQuantity required : 1 |
||||||
|
21 |
B063849-SCREW TE FL M10X30 10. 9 More informationQuantity required : 5 |
||||||
|
22 |
887518-ANELLO OR 56. 74X3. 53 More informationQuantity required : 1 |
||||||
|
23 |
887461-SPACER PARASTRAPPI More informationQuantity required : 1 |
||||||
|
24 |
887517-CUSCINETTO A SFERE 61906 2RS1 30X47X9 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/2/img/132672.jpg)
25 |
GU95005325 - RONDELLE 25,2X36X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
26 |
NUT DE REAR WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
27 |
WASHER (25. 2X36X1) WHEEL SPINDLE FRONT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152323 More informationQuantity required : 1 |
