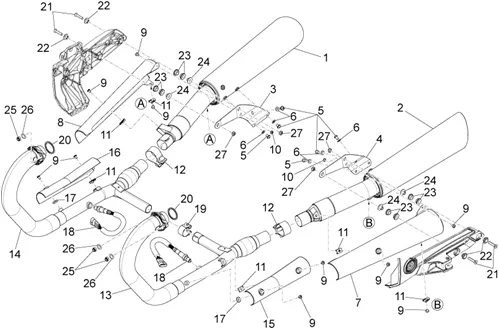

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring ABS 2012-2014 MOTO-GUZZI

Moteur : 03.330 POT D ECHAPPEMENT
Pot d echappement
Search
B064126 - (*)SILENZIATORE DI SCARICO DX

1
P2R reference P2R reference 101278
Maker reference Maker reference B064126

B064126-(*) SILENZIATORE DI SCARICO DX *

More information

Quantity required : 1

B064127 - SILENZIATORE DI SCARICO SX

2
P2R reference P2R reference 101279
Maker reference Maker reference B064127

B064127-SILENZIATORE DI SCARICO SX

More information

Quantity required : 1

887590 - STAFFA SUPPORTO SILENZIATORE DX

3
P2R reference P2R reference 99472
Maker reference Maker reference 887590

887590-STAFFA BRACKET SILENZIATORE DX

More information

Quantity required : 1

887589 - STAFFA SUPPORTO SILENZIATORE SX

4
P2R reference P2R reference 99471
Maker reference Maker reference 887589

887589-STAFFA BRACKET SILENZIATORE SX

More information

Quantity required : 1

AP8152055 - VIS

5
P2R reference P2R reference 71911
Maker reference Maker reference AP8152055

AP8152055-SCREW

More information

Quantity required : 6

GU95008308 - RONDELLE

6
P2R reference P2R reference 132688
Maker reference Maker reference GU95008308

GU95008308-WASHER

More information

Quantity required : 6

B063595 - PROTEZIONE ANTICALORE SILENZ SX CROM

7
P2R reference P2R reference 101137
Maker reference Maker reference B063595

B063595-PROTEZIONE ANTICALORE SILENZ SX CROM

More information

Quantity required : 1

B063596 - PROTEZIONE ANTICALORE SILENZ. DX CROM

8
P2R reference P2R reference 101138
Maker reference Maker reference B063596

B063596 - PROTEZIONE ANTICALORE SILENZ. DX CROM

More information

Quantity required : 1

SCREW FLANGE BTR (6X10) DE SHEET METAL EXHAUST OEM PIAGGIO MOTO-GUZZI 750 V7, 850 V9, V85, 1400 CALIFORNIA, ELDORADO-2B000215

9
P2R reference P2R reference 98061
Maker reference Maker reference 2B000215

SCREW FLANGE BTR (6X10) DE SHEET METAL EXHAUST OEM PIAGGIO MOTO-GUZZI 750 V7, 850 V9, V85, 1400 CALIFORNIA, ELDORADO-2B000215

More information

Quantity required : 10

AP8152313 - ECROU EN CAGE

10
P2R reference P2R reference 71964
Maker reference Maker reference AP8152313

AP8152313-NUT EN CAGE

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

11
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 6

B063293 - FASCETTA D. 48

12
P2R reference P2R reference 101084
Maker reference Maker reference B063293

B063293-FASCETTA D. 48

More information

Quantity required : 2

2B003738 - COLLECTEUR ECHAPP. G.

13
P2R reference P2R reference 142475
Maker reference Maker reference 2B003738

2B003738-MANIFOLD ECHAPP. G.

More information

Quantity required : 1

2B003739 - COLLECTEUR ECHAPP. D.

14
P2R reference P2R reference 142476
Maker reference Maker reference 2B003739

2B003739-MANIFOLD ECHAPP. D.

More information

Quantity required : 1

B063593 - PROTEZIONE ANTICALORE COLLET SX CROM

15
P2R reference P2R reference 101135
Maker reference Maker reference B063593

B063593-PROTEZIONE ANTICALORE COLLET SX CROM

More information

Quantity required : 1

B063594 - PROTEZIONE ANTICALORE COLLET DX CROMATA

16
P2R reference P2R reference 101136
Maker reference Maker reference B063594

B063594-PROTEZIONE ANTICALORE COLLET DX CROMATA

More information

Quantity required : 1

WASHER INTERCALAIRE OEM PIAGGIO COMMON A LA RANGE-876879

17
P2R reference P2R reference 70637
Maker reference Maker reference 876879

WASHER INTERCALAIRE OEM PIAGGIO COMMON A LA RANGE-876879

More information

Quantity required : 2

SONDE LAMBDA L 325 MM OEM PIAGGIO COMMON A LA RANGE-584344

18
P2R reference P2R reference 67299
Maker reference Maker reference 584344

SONDE LAMBDA L 325 MM OEM PIAGGIO COMMON A LA RANGE-584344

More information

Quantity required : 2

B063292 - FASCETTA D 37

19
P2R reference P2R reference 101083
Maker reference Maker reference B063292

B063292-FASCETTA D 37

More information

Quantity required : 1

GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 1200 SPORT, STELVIO, GRISO, NORGE, 1400 CALIFORNIA, ELDORADO-976376

20
P2R reference P2R reference 99845
Maker reference Maker reference 976376

GASKET EXHAUST OEM PIAGGIO MOTO-GUZZI 1200 SPORT, STELVIO, GRISO, NORGE, 1400 CALIFORNIA, ELDORADO-976376

More information

Quantity required : 2

B063114 - VITE TSPEI M8 X 40

21
P2R reference P2R reference 100988
Maker reference Maker reference B063114

B063114-SCREW TSPEI M8 X 40

More information

Quantity required : 4

887816 - BUSSOLA

22
P2R reference P2R reference 99524
Maker reference Maker reference 887816

887816-BUSSOLA

More information

Quantity required : 4

BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558

23
P2R reference P2R reference 71768
Maker reference Maker reference AP8144558

BUSH RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144558

More information

Quantity required : 8

BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121510

24
P2R reference P2R reference 71468
Maker reference Maker reference AP8121510

BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121510

More information

Quantity required : 4

NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021

25
P2R reference P2R reference 73550
Maker reference Maker reference GU92660021

NUT FLANGE (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660021

More information

Quantity required : 4

WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901

26
P2R reference P2R reference 73448
Maker reference Maker reference GU14615901

WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901

More information

Quantity required : 4

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

27
P2R reference P2R reference 71959
Maker reference Maker reference AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

More information

Quantity required : 4
