Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring ABS 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

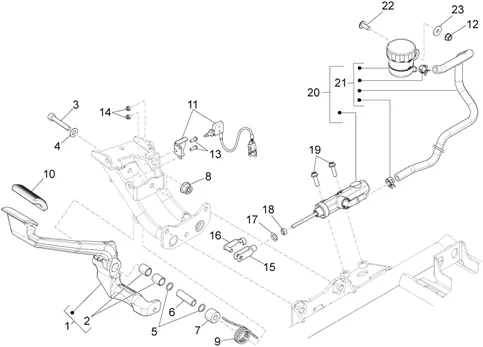

Système frein abs : 06.030 POMPE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/471/California_1400_Touring_ABS_2012-2014_06.030.PNG)
1 |
887556-LEVA BRAKE POSTERIORE CPL More informationQuantity required : 1 |
||||||
|
2 |
895328-BUSSOLA SINTERIZZATA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
3 |
SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591 More informationQuantity required : 1 |
||||||
|
4 |
GU95008308-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
5 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
||||||
|
6 |
B063903-SPACER More informationQuantity required : 1 |
||||||
|
7 |
887252 - BUSSOLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
|
9 |
B063328-MOLLA A TORSIONE More informationQuantity required : 1 |
||||||
|
10 |
GU43262180-PEDALE EN CAOUTCH. More informationQuantity required : 1 |
||||||
|
11 |
B064022-INTERRUTTORE STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/2/img/133052.jpg)
13 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-GU98370412 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/7/img/71167.jpg)
15 |
FOURCHETTE ROD OF CONTROL DE BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A ALA RANGE MOTO-AP8101968 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
16 |
AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
17 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
18 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
|
18 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
19 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
|
20 |
887689-PUMP BRAKE POST ABS More informationQuantity required : 1 |
||||||
|
21 |
B064104-(*) TANK OIL BRAKE * More informationQuantity required : 1 |
||||||
|
22 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98210616 More informationQuantity required : 1 |
||||||
|
23 |
GU91120620-SPACER More informationQuantity required : 1 |
