Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring ABS 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

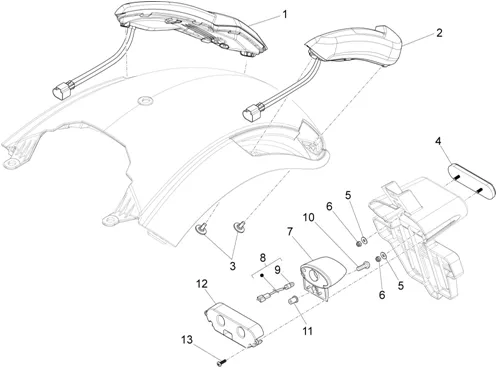

Instruments : 08.030 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/471/California_1400_Touring_ABS_2012-2014_08.030.PNG)
1 |
887534-(*) FANALE POSTERIORE DX EU More informationQuantity required : 1 |
||||||
|
1 |
887536-FANALE POSTERIORE DX USA More informationQuantity required : 1 |
||||||
|
2 |
887535-(*) FANALE POSTERIORE SX EU More informationQuantity required : 1 |
||||||
|
2 |
887537-(*) FANALE POSTERIORE SX USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
3 |
SCREW OF COVER CULBUTEURS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-976591 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
4 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
5 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150501 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
7 |
ECLAIRAGE DE PLATE D'IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-85256R More informationQuantity required : 1 |
||||||
|
8 |
B063432-LUCE TARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/9/img/71899.jpg)
10 |
SCREW CRUCIFORME (4X16) INOX OEM PIAGGIO COMMON A LA RANGE-AP8150522 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
11 |
RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564 More informationQuantity required : 1 |
||||||
|
12 |
B063454-BRACKET LUCE TARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
