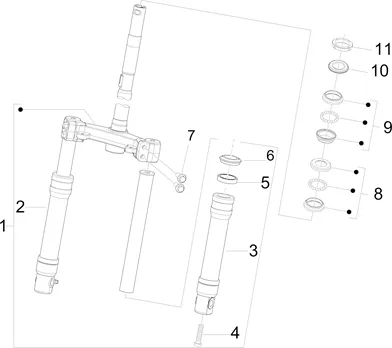

Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 2T E2 2009-2014 (EMEA) DERBI

Suspensions - roues : 4 FOURCHE AVANT
Fourche avant
Search
FORK SCOOT OEM PIAGGIO 50-125 FLY 2005 > 2011-649921

1
P2R reference P2R reference 68106
Maker reference Maker reference 649921

FORK SCOOT OEM PIAGGIO 50-125 FLY 2005 > 2011-649921

More information

Quantity required : 1

FOURREAU DE FORK (WUXI TOP) RIGHT OEM PIAGGIO 50 FLY 2006 > 2011-650431

2
P2R reference P2R reference 68148
Maker reference Maker reference 650431

FOURREAU DE FORK (WUXI TOP) RIGHT OEM PIAGGIO 50 FLY 2006 > 2011-650431

More information

Quantity required : 1

FOURREAU DE FORK (WUXI TOP) LEFT OEM PIAGGIO 50 FLY 2006 > 2011-650430

3
P2R reference P2R reference 68147
Maker reference Maker reference 650430

FOURREAU DE FORK (WUXI TOP) LEFT OEM PIAGGIO 50 FLY 2006 > 2011-650430

More information

Quantity required : 1

650433 - TORNILLO

4
P2R reference P2R reference 68150
Maker reference Maker reference 650433

650433-TORNILLO

More information

Quantity required : 2

OIL SEAL (32X44X10. 5) DE FORK OEM PIAGGIO 50-125 TYPHOON, 50-125 FLY, 125 LIBERTY/APRILIA 125 SR 2011, 50-125 SPORT-CITY ONE-649952

5
P2R reference P2R reference 68111
Maker reference Maker reference 649952

OIL SEAL (32X44X10. 5) DE FORK OEM PIAGGIO 50-125 TYPHOON, 50-125 FLY, 125 LIBERTY/APRILIA 125 SR 2011, 50-125 SPORT-CITY ONE-649952

More information

Quantity required : 2

649951 - PARE POUSSIERE

6
P2R reference P2R reference 68110
Maker reference Maker reference 649951

649951-PROTECTOR POUSSIERE *

More information

Quantity required : 2

650432 - VIS

7
P2R reference P2R reference 68149
Maker reference Maker reference 650432

650432-SCREW

More information

Quantity required : 4

BEARING DE STEERING LOWER OEM PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA, VESPA S, 125-250-300-400-500 MP3-65007545

8
P2R reference P2R reference 87018
Maker reference Maker reference 65007545

BEARING DE STEERING LOWER OEM PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA, VESPA S, 125-250-300-400-500 MP3-65007545

More information

Quantity required : 1

SET OF STEERING SCOOT OEM PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR (UPPER)-65069345

9
P2R reference P2R reference 68161
Maker reference Maker reference 65069345

SET OF STEERING SCOOT OEM PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR (UPPER)-65069345

More information

Quantity required : 1

WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514

10
P2R reference P2R reference 63783
Maker reference Maker reference 00375145

WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514

More information

Quantity required : 1

NUT SERRAGE STEERING OEM PIAGGIO ON L'ENSEMBLE DE LA RANGE MAXI SCOOTER-0111094

11
P2R reference P2R reference 65339
Maker reference Maker reference 01110945

NUT SERRAGE STEERING OEM PIAGGIO ON L'ENSEMBLE DE LA RANGE MAXI SCOOTER-0111094

More information

Quantity required : 1
