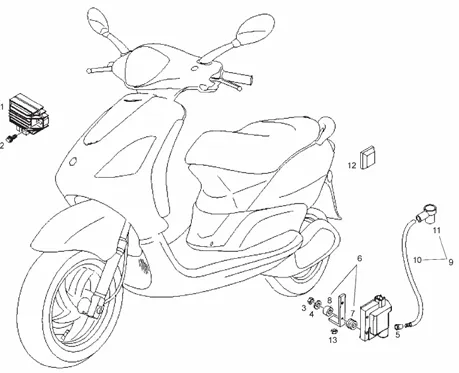

Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 2T E2 2009-2014 (EMEA) DERBI

Circuit électrique : 15 INSTALLATION ELECTRIQUE
Installation electrique
Search
REGULATEUR DE TENSION SCOOT OEM PIAGGIO 50 ZIP 2009 >, TYPHOON 2006 >, FLY 2005 >, LIBERTY 2006 >, NRG POWER 2005 > VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER 2005 >, RUNNER 2005 >-58096R

1
P2R reference P2R reference 67191
Maker reference Maker reference 58096R

REGULATEUR DE TENSION SCOOT OEM PIAGGIO 50 ZIP 2009 >, TYPHOON 2006 >, FLY 2005 >, LIBERTY 2006 >, NRG POWER 2005 > VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER 2005 >, RUNNER 2005 >-58096R

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

2
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

241937 - ECROU

3
P2R reference P2R reference 65984
Maker reference Maker reference 241937

241937 - ECROU

More information

Quantity required : 1

4
P2R reference P2R reference
Maker reference Maker reference 01668665

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571

5
P2R reference P2R reference 65966
Maker reference Maker reference 231571

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571

More information

Quantity required : 1

BOBINE IGNITION SCOOTER OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T, VESPA LX 2T, VESPA-S 2T/APRILIA 50 CITY 2T, SR, SCARABEO 2T/GILERA 50 DNA, STALKER, RUNNER-58095R

6
P2R reference P2R reference 67190
Maker reference Maker reference 58095R

BOBINE IGNITION SCOOTER OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T, VESPA LX 2T, VESPA-S 2T/APRILIA 50 CITY 2T, SR, SCARABEO 2T/GILERA 50 DNA, STALKER, RUNNER-58095R

More information

Quantity required : 1

RUBBER/SILENBLOC (8MM) OEM PIAGGIO COMMON A LA RANGE-217163

7
P2R reference P2R reference 65932
Maker reference Maker reference 217163

RUBBER/SILENBLOC (8MM) OEM PIAGGIO COMMON A LA RANGE-217163

More information

Quantity required : 1

SPACER FITTING KIT HOSE OF BRAKE FRONT OEM PIAGGIO 125-350-500 X10, 300-350 BEVERLY-174969

8
P2R reference P2R reference 65771
Maker reference Maker reference 174969

SPACER FITTING KIT HOSE OF BRAKE FRONT OEM PIAGGIO 125-350-500 X10, 300-350 BEVERLY-174969

More information

Quantity required : 1

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186

9
P2R reference P2R reference 68522
Maker reference Maker reference 825186

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186

More information

Quantity required : 1

CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341

10
P2R reference P2R reference 65668
Maker reference Maker reference 0803415

CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341

More information

Quantity required : 1

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186

11
P2R reference P2R reference 68522
Maker reference Maker reference 825186

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186

More information

Quantity required : 1

CENTRE OEM PIAGGIO 50 FLY, NRG, TYPHOON, VESPA LX, PRIMAVERA, SPRINT, VESPA-S 2T/APRILIA 50 SR MOTARD, SPORT-CITY 2T-639027

12
P2R reference P2R reference 67819
Maker reference Maker reference 639027

CENTRE OEM PIAGGIO 50 FLY, NRG, TYPHOON, VESPA LX, PRIMAVERA, SPRINT, VESPA-S 2T/APRILIA 50 SR MOTARD, SPORT-CITY 2T-639027

More information

Quantity required : 1

241937 - ECROU

13
P2R reference P2R reference 65984
Maker reference Maker reference 241937

241937 - ECROU

More information

Quantity required : 1
