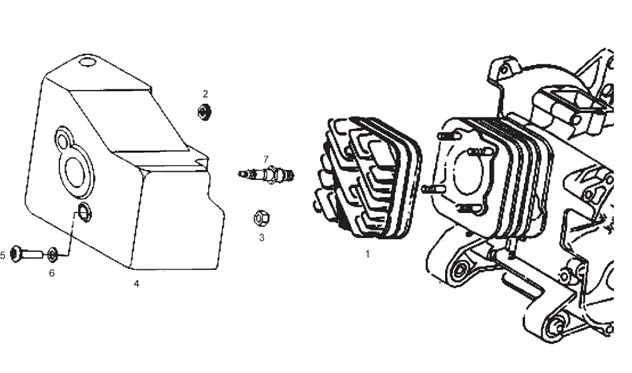

Moteur : 37 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1141/Boulevard_50_2T_E2_2009-2014_(EMEA)_37.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/4/img/66174.jpg)
1 |
CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-2865344 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
2 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/4/img/66194.jpg)
3 |
NUT/SPACER (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-288531 More informationQuantity required : 1 |
||||||
4 |
845693 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
5 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
6 |
WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/1/img/66531.jpg)
7 |
SPARK PLUG CHAMPION RN3C OEM PIAGGIO 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR-438075 More informationQuantity required : 1 |
