Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 2T E2 2009-2014 (EMEA) DERBI

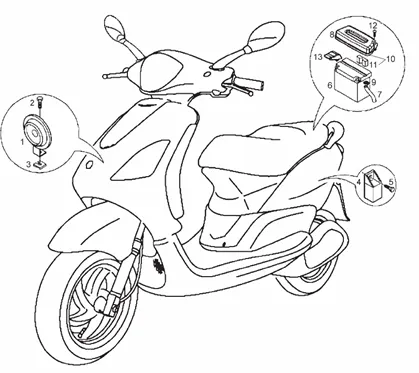

Circuit électrique : 14 INSTALLATION ELECTRIQUE
Installation electrique
Search
58093R - AVERTISSEUR

1
P2R reference P2R reference 67188
Maker reference Maker reference 58093R

AVERTISSEUR OEM PIAGGIO 50 TYPHOON, FLY, NRG, 125-250-300 VESPA GTS-58093R

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

2
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

3
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

4
P2R reference P2R reference 67203
Maker reference Maker reference 58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

More information

Quantity required : 1

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

5
P2R reference P2R reference 70959
Maker reference Maker reference 969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

More information

Quantity required : 1

BATTERY 12V 4AH PB4L-B WITH ACIDE OEM PIAGGIO COMMON A LA RANGE-1L004079

6
P2R reference P2R reference 153423
Maker reference Maker reference 1L004079

BATTERY 12V 4AH PB4L-B WITH ACIDE OEM PIAGGIO COMMON A LA RANGE-1L004079

More information

Quantity required : 1

BATTERY 12V 4AH PB4L-B OEM PIAGGIO COMMON A LA RANGE-1L004080

6
P2R reference P2R reference 153424
Maker reference Maker reference 1L004080

BATTERY 12V 4AH PB4L-B OEM PIAGGIO COMMON A LA RANGE-1L004080

More information

Quantity required : 1

BATTERY 12V 4AH PTX4L-BS OEM PIAGGIO COMMON A LA RANGE-1L004081

6
P2R reference P2R reference 153425
Maker reference Maker reference 1L004081

BATTERY 12V 4AH PTX4L-BS OEM PIAGGIO COMMON A LA RANGE-1L004081

More information

Quantity required : 1

BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390

6
P2R reference P2R reference 65970
Maker reference Maker reference 234390

BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390

More information

Quantity required : 1

582520 - RENIFLARD

7
P2R reference P2R reference 67259
Maker reference Maker reference 582520

582520-RENIFLARD

More information

Quantity required : 1

199664 - JOINT

8
P2R reference P2R reference 65833
Maker reference Maker reference 199664

199664-GASKET

More information

Quantity required : 1

639082-CLAMP

9
P2R reference P2R reference 67822
Maker reference Maker reference 639082

639082-CLAMP

More information

Quantity required : 1

COVER DE BATTERY OEM PIAGGIO 50 FLY 2T 2010 > 2011-623511

10
P2R reference P2R reference 67742
Maker reference Maker reference 623511

COVER DE BATTERY OEM PIAGGIO 50 FLY 2T 2010 > 2011-623511

More information

Quantity required : 1

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE-297446

11
P2R reference P2R reference 66300
Maker reference Maker reference 297446

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE-297446

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

12
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1

623132000C - COUVERCLE

13
P2R reference P2R reference 67737
Maker reference Maker reference 623132000C

623132000C-COVER

More information

Quantity required : 1
