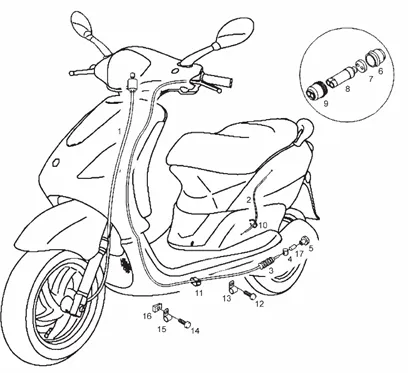

Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 2T E2 2009-2014 (EMEA) DERBI

Circuit électrique : 12 CABLAGE
Cablage
Search
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER SCOOT OEM PIAGGIO 50-125 FLY 2005 > 2011-600315

1
P2R reference P2R reference 67429
Maker reference Maker reference 600315

CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER SCOOT OEM PIAGGIO 50-125 FLY 2005 > 2011-600315

More information

Quantity required : 1

CABLE/CONTROL/TRANSMISSION THROTTLE (DEDOUBLEUR/OIL PUMP) OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON 2012 >/GILERA 50 STALKER-268403

2
P2R reference P2R reference 66071
Maker reference Maker reference 268403

CABLE/CONTROL/TRANSMISSION THROTTLE (DEDOUBLEUR/OIL PUMP) OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON 2012 >/GILERA 50 STALKER-268403

More information

Quantity required : 1

CABLE/CONTROL/TRANSMISSION OF BRAKE REAR SCOOT OEM PIAGGIO 50-125 FLY 2005 > 2011-601736

3
P2R reference P2R reference 67509
Maker reference Maker reference 601736

CABLE/CONTROL/TRANSMISSION OF BRAKE REAR SCOOT OEM PIAGGIO 50-125 FLY 2005 > 2011-601736

More information

Quantity required : 1

BUSH/EMBOUT DE CABLE OF BRAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-266040

4
P2R reference P2R reference 66051
Maker reference Maker reference 266040

BUSH/EMBOUT DE CABLE OF BRAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-266040

More information

Quantity required : 1

NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310

5
P2R reference P2R reference 66088
Maker reference Maker reference 270310

NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310

More information

Quantity required : 1

PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976

6
P2R reference P2R reference 66108
Maker reference Maker reference 271976

PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976

More information

Quantity required : 1

BUTEE DE GAINE DE REPARTITEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-269572

7
P2R reference P2R reference 66084
Maker reference Maker reference 269572

BUTEE DE GAINE DE REPARTITEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-269572

More information

Quantity required : 1

DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571

8
P2R reference P2R reference 66083
Maker reference Maker reference 269571

DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571

More information

Quantity required : 1

PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977

9
P2R reference P2R reference 66109
Maker reference Maker reference 271977

PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

10
P2R reference P2R reference 66017
Maker reference Maker reference 257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 1

CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590

11
P2R reference P2R reference 65967
Maker reference Maker reference 231590

CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

12
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

PLATE DE MAINTIEN DU CABLE OF BRAKE ON CASING ENGINE OEM PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S-564497

13
P2R reference P2R reference 67059
Maker reference Maker reference 564497

PLATE DE MAINTIEN DU CABLE OF BRAKE ON CASING ENGINE OEM PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S-564497

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

14
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 1

487824 - COLLIER

15
P2R reference P2R reference 66758
Maker reference Maker reference 487824

487824 - COLLIER

More information

Quantity required : 1

CLAMP OEM PIAGGIO COMMON A LA RANGE-216983

16
P2R reference P2R reference 65927
Maker reference Maker reference 216983

CLAMP OEM PIAGGIO COMMON A LA RANGE-216983

More information

Quantity required : 1

PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640

17
P2R reference P2R reference 65794
Maker reference Maker reference 179640

PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640

More information

Quantity required : 1
