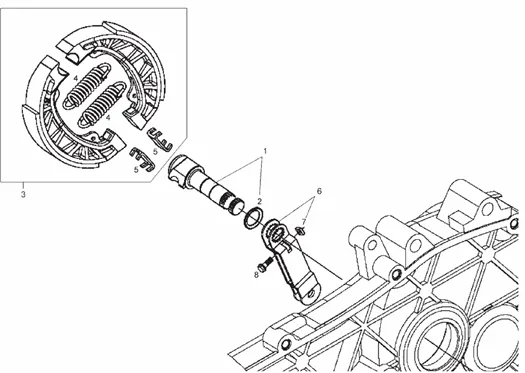

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA) DERBI

Suspensions - roues : 49 FREIN ARRIERE
Frein arriere
Search
B0164755 - COMPLETE BRAKE LEVER AXLE

1
P2R reference P2R reference 162671
Maker reference Maker reference B0164755

B0164755-COMPLETE BRAKE LEVER AXLE

More information

Quantity required : 1

564134 - O-RING

2
P2R reference P2R reference 67047
Maker reference Maker reference 564134

564134-O-RING

More information

Quantity required : 1

MACHOIRES OF BRAKE REAR OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA PRIMAVERA, VESPA SPRINT/APRILIA 125 MOJITO, SPORT-CITY (SET)-56294R5

3
P2R reference P2R reference 67024
Maker reference Maker reference 56294R5

MACHOIRES OF BRAKE REAR OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA PRIMAVERA, VESPA SPRINT/APRILIA 125 MOJITO, SPORT-CITY (SET)-56294R5

More information

Quantity required : 1

SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384

4
P2R reference P2R reference 68017
Maker reference Maker reference 647384

SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384

More information

Quantity required : 1

266724 - PLAQUE

5
P2R reference P2R reference 66055
Maker reference Maker reference 266724

266724-PLATE

More information

Quantity required : 1

564215 - LEVIER DU FREIN

6
P2R reference P2R reference 67049
Maker reference Maker reference 564215

564215-LEVER DU BRAKE

More information

Quantity required : 1

NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862

7
P2R reference P2R reference 68791
Maker reference Maker reference 828862

NUT CARRE (D6) OEM PIAGGIO COMMON A LA RANGE-828862

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

8
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 1
