Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

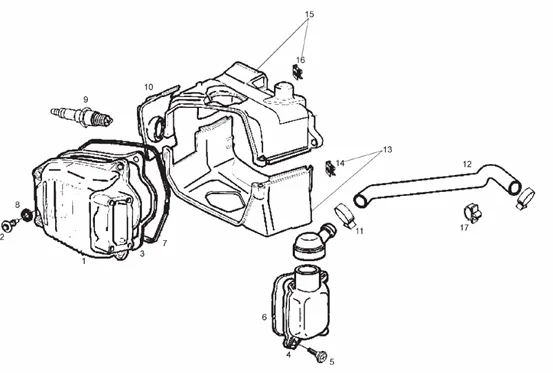

Moteur : 37 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1137/Boulevard_125_4T_E3_2008_(EMEA)_37.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/8/img/70648.jpg)
1 |
COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC AIR-877140 More informationQuantity required : 1 |
||||||
2 |
828653 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/0/img/68870.jpg)
3 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC AIR-8298176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/9/img/68809.jpg)
4 |
COVER DE RENIFLARD OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, VESPA-S-829008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
5 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
6 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-1A003985 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/4/img/68534.jpg)
7 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC AIR-825364 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/3/img/68533.jpg)
8 |
WASHER (12, 2X18X0, 5) OEM PIAGGIO COMMON A LA RANGE-825363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/9/img/66529.jpg)
9 |
SPARK PLUG CHAMPION RG6YC OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-438073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/3/img/67813.jpg)
9 |
SPARK PLUG CR7EB OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 MOJITO, SPORT-CITY ONE-638852 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/5/img/68535.jpg)
10 |
COVER SPARK PLUG OEM PIAGGIO 125 LIBERTY, X8, FLY, LX 2012 >-825368 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
11 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/7/img/69247.jpg)
12 |
HOSE RENIFLARD OIL OEM PIAGGIO COMMON A LA RANGE 125 2014 < More informationQuantity required : 1 |
||||||
|
13 |
871760-COIFFE CYLINDER More informationQuantity required : 1 |
||||||
|
14 |
826275 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
15 |
871762-COIFFE CYLINDER More informationQuantity required : 1 |
||||||
|
16 |
826275 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
17 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 1 |
