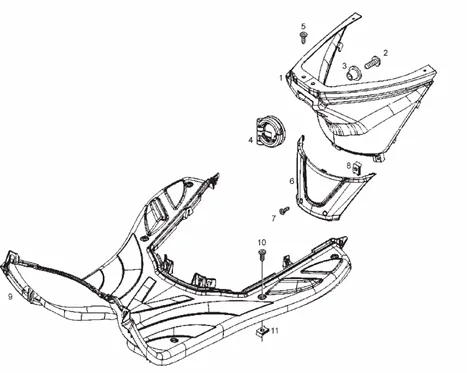

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 22 CHASSIS
Chassis
Search
621988000C - CARENAGE SELLE

1
P2R reference P2R reference 67703
Maker reference Maker reference 621988000C

621988000C - CARENAGE SELLE

More information

Quantity required : 1

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

2
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

More information

Quantity required : 1

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

3
P2R reference P2R reference 68888
Maker reference Maker reference 830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

More information

Quantity required : 1

CROCHET DOOR SAC OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-575819

4
P2R reference P2R reference 67122
Maker reference Maker reference 575819

CROCHET DOOR SAC OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-575819

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

5
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 -621989000C

6
P2R reference P2R reference 67705
Maker reference Maker reference 621989000C

SPARK PLUG TRAPDOOR "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 -621989000C

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

7
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

8
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 1

STEP FOOT/PLANCHER OEM PIAGGIO 50-125 FLY 2007 > 2011 BLACK-621985000C

9
P2R reference P2R reference 67687
Maker reference Maker reference 621985000C

STEP FOOT/PLANCHER OEM PIAGGIO 50-125 FLY 2007 > 2011 BLACK-621985000C

More information

Quantity required : 1

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

10
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

11
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1
