Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

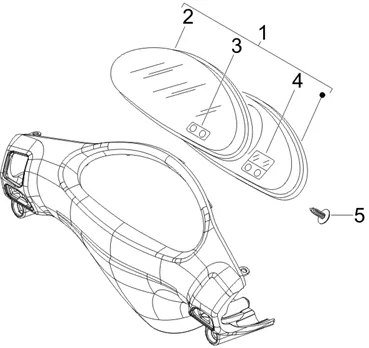

Châssis - parties plastiques - carrosseries : 27 COMPTEUR KILOMÉTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1137/Boulevard_125_4T_E3_2008_(EMEA)_27.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
0 |
PILE HORLOGE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998 > 2004/GILERA 50 STALKER-498342 More informationQuantity required : 1 |
||||||
1 |
INSTRUMENT CLUSTER OEM PIAGGIO 125 FLY 2006 > 2011-641159 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/4/img/66784.jpg)
2 |
VITRE DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 FLY 2000 > 2011-494518 More informationQuantity required : 1 |
||||||
|
3 |
494519 - POUSSOIR More informationQuantity required : 1 |
||||||
|
4 |
494521-HORLOGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
5 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 4 |
