Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

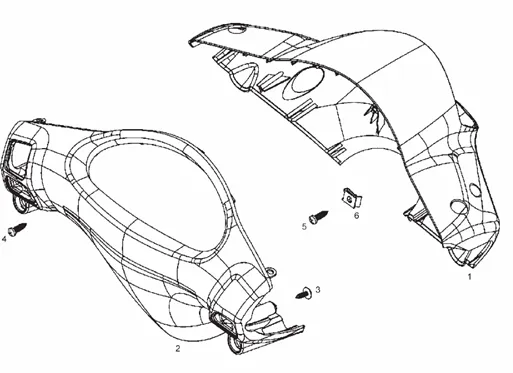

Châssis - parties plastiques - carrosseries : 26 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1137/Boulevard_125_4T_E3_2008_(EMEA)_26.png)
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50-125 FLY 2006 > 2011 WHITE 724-6527410087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/2/img/68192.jpg)
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50-125 FLY 2006 > 2011 BLACK 94-6527410090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/9/7/img/68197.jpg)
2 |
COVER STEERING INNER OEM PIAGGIO 50-125 FLY 2006 > BLACK-652742000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
3 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
SCREW AUTOTARAUDEUSE (4X35) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-265636 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
5 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
