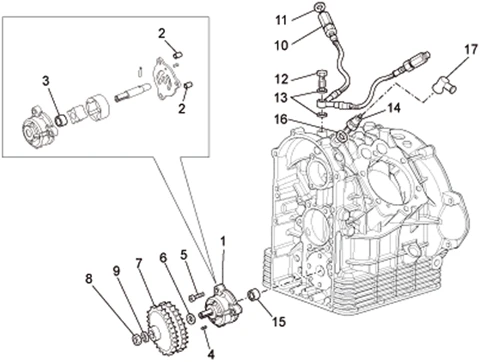

Moteur : 34.41 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/463/Bellagio_940_2007-2013_34.41.PNG)
1 |
976134-ASS. PUMP OIL BREVA 1100 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
2 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
|
3 |
976165-ASTUCCIIO A RULLINI 12X18X12 More informationQuantity required : 1 |
||||||
|
4 |
GU13148300 - CLAVETTE More informationQuantity required : 1 |
||||||
|
5 |
GU98350330-SCREW M6X30 More informationQuantity required : 3 |
||||||
|
6 |
976448-RALLA DI SPALLAMENTO INGR PUMP OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/3/6/img/130636.jpg)
7 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30147700 More informationQuantity required : 1 |
||||||
|
8 |
GU92602510-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
9 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 1 |
||||||
|
10 |
GU05153630-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/5/0/img/129950.jpg)
11 |
GASKET (10. 2X14X1. 5) OEM MOTO GUZZI COMMON A LA RANGE-GU25656102 More informationQuantity required : 2 |
||||||
|
12 |
GU95990037-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
13 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/9/4/img/129394.jpg)
14 |
MANOMETRE/DETECTEUR PRESSION OIL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU17768750 More informationQuantity required : 1 |
||||||
|
15 |
976168-ASTUCCIO A RULLINI 10X14X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
16 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 1 |
||||||
|
17 |
976688-CAPPUCCIO (SOST. 883888) More informationQuantity required : 1 |
