Vehicle Exploded View - MOTO-GUZZI BELLAGIO 940 940 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

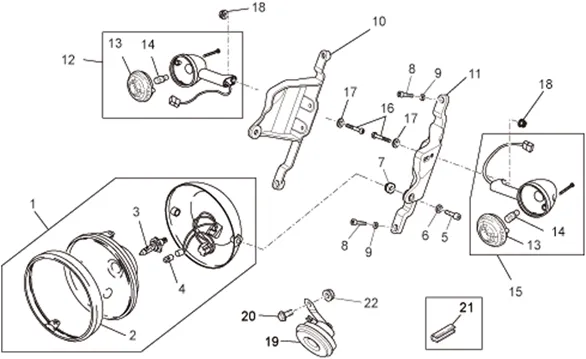

Chassis : 33.31 FEU AV/KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/463/Bellagio_940_2007-2013_33.31.PNG)
1 |
978311-FANALE ANT DX * More informationQuantity required : 1 |
||||||
|
1 |
978662 - FANALE ANT SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/9/img/67889.jpg)
2 |
ENTOURAGE DE HEADLAMP CHROME MOTO-GUZZI 750 V7, NEVADA, BREVA, 1100 GRISO, V11, 940 BELLAGIO/PIAGGIO 250-500 BEVERLY CRUISER 2007 > 2012-640598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
3 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
5 |
GU98370831-SCREW TBEI M8X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
6 |
WASHER PLATE (8, 4X14, 57X1, 6) OEM PIAGGIO COMMON A LA RANGE-GU95005308 More informationQuantity required : 2 |
||||||
|
7 |
GU14439800 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/0/img/133180.jpg)
8 |
SCREW BTR (6X18) OEM PIAGGIO COMMON A LA RANGE-GU98682318 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
9 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 4 |
||||||
|
10 |
9783734 - SUPPORTO DX FARO (ERA 978373) More informationQuantity required : 1 |
||||||
|
11 |
9783744 - SUPPORTO SX FARO (ERA 978374) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/3/0/img/99530.jpg)
12 |
FRONT RIGHT INDICATOR/REAR LEFT OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-887826 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/4/7/img/131747.jpg)
12 |
FRONT RIGHT INDICATOR/REAR LEFT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU32750660 More informationQuantity required : 1 |
||||||
|
13 |
GU32753760 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
14 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/3/1/img/99531.jpg)
15 |
FRONT LEFT INDICATOR/REAR RIGHT OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-887827 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/6/5/img/129065.jpg)
15 |
FRONT LEFT INDICATOR/REAR RIGHT TOUT CHROME OEM PIAGGIO MOTO-GUZZI V7, NEVADA, BELLAGIO 2016 <-GU06751600 More informationQuantity required : 1 |
||||||
|
16 |
GU98692318-SCREW M6X18 More informationQuantity required : 2 |
||||||
|
17 |
GU95021206-WASHER More informationQuantity required : 2 |
||||||
|
18 |
GU92787006-NUT More informationQuantity required : 2 |
||||||
|
19 |
883463-CLAXON TONO L More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
20 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
|
21 |
AP8144707-GUARNIZIONE TELAIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
22 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
