Vehicle Exploded View - MOTO-GUZZI BELLAGIO 940 940 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

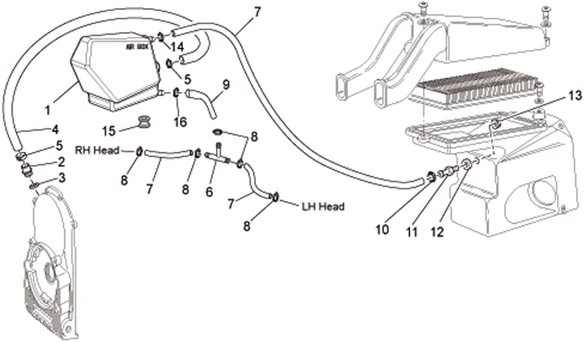

Chassis : 33.21 INSTALLATION BLOW-BY
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/463/Bellagio_940_2007-2013_33.21.PNG)
1 |
978320 - SERBATOIO BLOW-BY More informationQuantity required : 1 |
||||||
|
2 |
GU03007260-RACCORDO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
3 |
WASHER CUIVRE (18. 25X24X1) OEM MOTO GUZZI COMMON A LA RANGE-GU18144350 More informationQuantity required : 3 |
||||||
|
4 |
978461 - TUBAZIONE PER SFIATO More informationQuantity required : 1 |
||||||
|
5 |
GU93306018-CLAMP 17X29X8 More informationQuantity required : 2 |
||||||
|
6 |
GU95960609-FITTING 3 VOIES More informationQuantity required : 1 |
||||||
|
7 |
HOSE DE VALVE RENIFLARD 12, 5X7, 8 5/16 " OEM MOTO GUZZI COMMON A LA RANGE-GU00823956080 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
8 |
HOSE CLAMP HOSE (9X11. 9) OEM PIAGGIO COMMON A LA RANGE-AP8201358 More informationQuantity required : 5 |
||||||
|
9 |
978588-TUBO SFIATO OIL More informationQuantity required : 1 |
||||||
|
10 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 1 |
||||||
|
11 |
GU29116960-FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/5/6/img/132256.jpg)
12 |
GASKET FIBRE (8. 25X15X1) RENIFLARD BOX A AIR OEM MOTO GUZZI-GU90714082 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/8/img/132538.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660208 More informationQuantity required : 1 |
||||||
|
14 |
GU93306017-CLAMP More informationQuantity required : 1 |
||||||
|
15 |
GU91551010-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
16 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 1 |
