Vehicle Exploded View - MOTO-GUZZI BELLAGIO 940 940 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

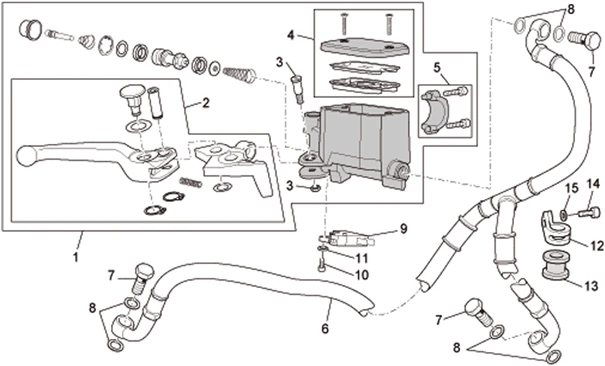

Chassis : 33.19 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/463/Bellagio_940_2007-2013_33.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/1/1/img/100711.jpg)
1 |
BRAKE MASTER CYLINDER FRONT OEM PIAGGIO MOTO-GUZZI BELAGIO, NORGE, GRISO, BREVA, STELVIO-978606 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/8/2/img/71082_20251023155953.jpg)
2 |
BRAKE LEVER FRONT OEM PIAGGIO MOTO-GUZZI 850-1200 NORGE, GRISO, BREVA, 1200 SPORT, STELVIO, 940 BELLAGIO/APRILIA 650 PEGASO, 1000 CAPONOR, FUTURA-981050 More informationQuantity required : 1 |
||||||
3 |
AP8113995-STUD DE LEVER More informationQuantity required : 1 |
||||||
|
4 |
GU05661130-CAP TANK More informationQuantity required : 1 |
||||||
|
5 |
AP8113993-CAVALIER More informationQuantity required : 1 |
||||||
|
6 |
978362-TUBAZIONE BRAKE ANT More informationQuantity required : 1 |
||||||
|
7 |
AP8133962-EMBOUCHURE M10X1 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/7/img/72327.jpg)
9 |
CONTACTEUR DE STOP OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI/APRILIA 50-125 MOJITO, 650 PEGASO, 1000 CAPONORD-AP8224192 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/2/img/133052.jpg)
10 |
SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-GU98370412 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/9/1/img/132691.jpg)
11 |
WASHER PLATE (4. 3X8X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95021104 More informationQuantity required : 1 |
||||||
|
12 |
GU03658430-CLAMP More informationQuantity required : 2 |
||||||
|
13 |
GU03658201-BUSH More informationQuantity required : 2 |
||||||
|
14 |
GU98370619-SCREW More informationQuantity required : 2 |
||||||
|
15 |
GU95005307-WASHER More informationQuantity required : 2 |
