Vehicle Exploded View - MOTO-GUZZI AUDACE 1400 1400 Carbon E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

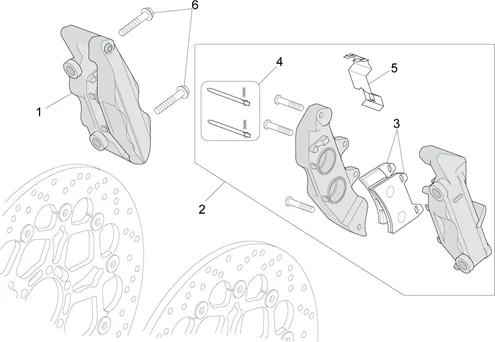

Système frein abs : 06.02 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/925/Audace_1400_Carbon_E4_ABS_2017_(EMEA_LATAM)_06.02.png)
1 |
2B003978-PINCE BRAKE More informationQuantity required : 1 |
||||||
|
2 |
2B003977-PINCE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/8/img/70748.jpg)
3 |
BRAKE PAD FRONT OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2012 >, AUDACE 2015 >, ELDORADO 2015 >, 1200 STELVIO, 750 V-7 STONE, V-7 RACER (PAIRE)-883673 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
4 |
PIVOT + SPRING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01659130 More informationQuantity required : 2 |
||||||
|
5 |
GU01659131-MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
6 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152414 More informationQuantity required : 4 |
