Vehicle Exploded View - MOTO-GUZZI AUDACE 1400 1400 Carbon E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

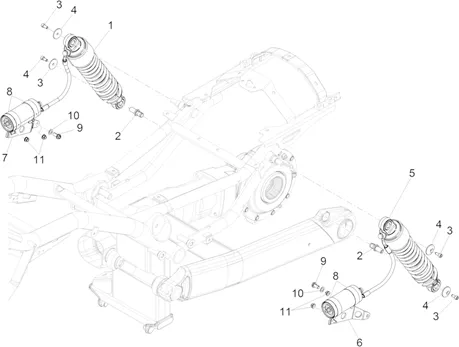

Suspensions : 04.08 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/925/Audace_1400_Carbon_E4_ABS_2017_(EMEA_LATAM)_04.08.png)
1 |
2B000092-AMMORTIZZATRE POST. DX More informationQuantity required : 1 |
||||||
|
2 |
B064264-PIVOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/8/9/7/img/98897.JPG)
3 |
884031-SCREW TCEI M6X14 PREIMPREGNATA More informationQuantity required : 4 |
||||||
|
4 |
2B000141-BUSSOLA FORATA More informationQuantity required : 4 |
||||||
|
5 |
2B000091-AMMORTIZZATORE SX More informationQuantity required : 1 |
||||||
|
6 |
2B000125-FLANGE LEFT More informationQuantity required : 1 |
||||||
|
7 |
2B000126-STAFFA DX SUPP. TANK REMOTO More informationQuantity required : 1 |
||||||
|
8 |
2B000127-FASCETTA PER TUBI METALLICI More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
9 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
10 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
