Vehicle Exploded View - MOTO-GUZZI AUDACE 1400 1400 Carbon E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

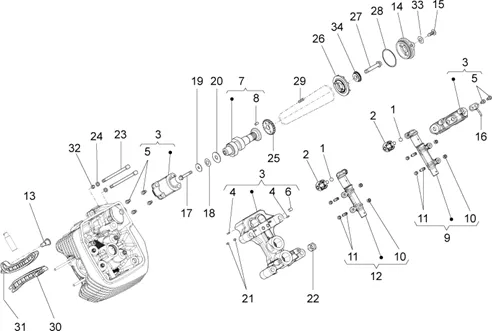

Moteur : 03.145 DISTRIBUTION CYLINDRE GAUCHE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/925/Audace_1400_Carbon_E4_ABS_2017_(EMEA_LATAM)_03.145.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/4/img/70684.jpg)
1 |
PLATE OF ADJUSTMENT OF CULBUTEUR ORI8GINE MOTO GUZZI 1200-1400-878574 More informationQuantity required : 2 |
||||||
2 |
B0170675-POUSSOIR More informationQuantity required : 2 |
||||||
|
3 |
8871625-SUPP ASSE A CAMME/BILANC. SX PI X RIC. More informationQuantity required : 1 |
||||||
|
4 |
872759-RULLINO NRB TESTA P. 2, 5X9, 8 G2 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
5 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
6 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 1 |
||||||
|
7 |
B0145765-(*) ASSE A CAMME CON P. I. X RIC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/7/img/99887.jpg)
8 |
GOUPILLE/TENON TIMING ORIGINEMOTO GUZZI COMMON A LA RANGE-976589 More informationQuantity required : 1 |
||||||
|
9 |
2A000251-CULBUTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/7/img/70717.jpg)
10 |
NUT REGLAGE CULBUTEUR OEM PIAGGIO 125-250 X-EVO, VESPA GTS/MOTO-GUZZI ENGINE 1200, 1400 CC-879916 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/0/0/img/98400.JPG)
11 |
SCREW OF REGLAGE TIMING OEM MOTO GUZZI-879707 More informationQuantity required : 4 |
||||||
|
12 |
2A000252-CULBUTEUR CPL. More informationQuantity required : 1 |
||||||
|
13 |
878868-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/8/0/1/img/127801.jpg)
14 |
RENIFLARD ON CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-2A000082 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
15 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965 More informationQuantity required : 2 |
||||||
|
16 |
B013661-LAMIERINO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
17 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
18 |
879938-* MOLLE A TAZZA More informationQuantity required : 1 |
||||||
|
19 |
879936-RONDELLA DI RASAMENTO More informationQuantity required : 1 |
||||||
|
20 |
879937-RONDELLA DI RASAMENTO More informationQuantity required : 1 |
||||||
|
21 |
B013552-RULLINO ANTIROTAZIONE More informationQuantity required : 2 |
||||||
|
22 |
825694 - ECROU More informationQuantity required : 4 |
||||||
|
23 |
487444-SCREW FLG M6X120 FZN7II More informationQuantity required : 2 |
||||||
|
24 |
976674-WASHER PLATE More informationQuantity required : 2 |
||||||
|
25 |
976350-CORONA DISTRIBUZIONE More informationQuantity required : 1 |
||||||
|
26 |
2A000080-SEPARATEUR CENTRIFUGE BLOW-BY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/7/img/65837.jpg)
27 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-1A000425 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/4/2/5/img/98425.jpg)
28 |
BUSH/GASKET ETANCHEITE (2. 62X46. 52) TIMING OEM MOTO-GUZZI-880965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/3/6/img/99836.jpg)
29 |
CHAIN DE TIMING OEM PIAGGIO MOTO-GUZZI 1200 SPORT, GRISO, NORGE, STELVIO, 1400 CALIFORNIA-976341 More informationQuantity required : 1 |
||||||
|
30 |
976338-PATTINO TENDICATENA FISSO More informationQuantity required : 1 |
||||||
|
31 |
976337-PATTINO TENDICATENA MOBILE More informationQuantity required : 1 |
||||||
|
32 |
244585-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
33 |
WASHER ELASTIC (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-GU95129100 More informationQuantity required : 2 |
||||||
|
34 |
2A000081-SPACER More informationQuantity required : 2 |
